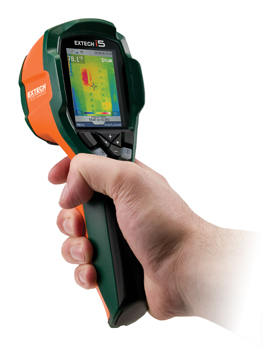

Extech i5
Thermal Imaging Infrared Camera |
| |
|
 |
|
Thermal Imaging
just got easier
Thermal imaging cameras can detect what
no eye can see such as the minor
variations in temperature that can
signal electrical or moisture problems.
Infrared inspection with the EXTECH i5
thermal imaging camera gives you a
powerful non0invasive monitoring and
diagnosing tool. Detect hot spots, avoid
electrical and mechanical failures,
locate water damage sources, find
missing insulation and leaky air ducts.
Your results can be captured and
documented instantly into professional
reports providing documented proof of
your findings. Arm yourself and your
crew with an EXTECH i5 and see what
you've been missing
| |
Features: |
|
|
-
|
High
accuracy of 2% and thermal
sensitivity of 0.1°C helps you
find problems faster and easier
- critical for condition
monitoring of thermally
sensitive targets |
|
-
|
Extremely
lightweight resulting in less
user fatigue (12 ounces) |
|
-
|
Pocket
sized and fully automatic design
makes it incredibly easy-to-use
even for first time users -
perfect for general purpose use |
|
-
|
Focus
free lenses for convenient
viewing |
|
-
|
2.8"
(71mm) high resolution color LCD |
|
-
|
Double
molded rugged design with easy
grip handle construction meets
IP43 dust/splashproof standards |
|
-
|
>4 hour
continuous operation on a single
charge for uninterrupted
inspections |
|
-
|
MiniSD
card stores up to 5000
radiometric JPEG format images.
Each image can be analyzed using
the included QuickReport PC
software |
|
-
|
Complete
with 512MB MiniSD Card, LI-Ion
rechargeable battery with
90-260V AC Adapter/Charger with
EU, UK, US, and Australian
Plugs, QuickReport software with
USB Mini-B cable, built-in
manual lens shutter, and hand
strap |
|
|
|
| |
Features |
|
|
Temperature Range: |
32°F to 482°F
(0°C to 250°C) |
| |
Image Storage: |
5000 Images (mini SC card memory) |
|
Emissivity: |
Emissivity Table;
0.1 to 1.0 adjustable |
| |
|
|
| |
Imaging
Performance / Image Presentation |
|
Field
of view/min focus distance |
17° x 17° / 0.6m
(2ft.) |
| |
Focus |
Focus free |
|
Thermal Sensitivity (N.E.T.D) |
<0.1°C at 25°C |
| |
Detector Type |
Focal plane array (FPA) uncooled
microbolometer; 80 x 80 pixels |
|
Spectral range |
7.5 to 13µm |
| |
Display |
2.8" color LCD |
|
Controls |
Palettes (Iron,
Rainbow, and Black/White) |
| |
Set-up controls |
Date/time, °C/°F, 21 languages |
|
Measurement modes |
Sport (with
correction for emissivity and reflected temperature) |
|
|
|
| |
Power Source /
Environmental Specs |
|
|
Battery Type |
Li-Ion |
| |
Battery operating time |
>4 hours, Display shows battery
status |
|
Charging system |
In camera, AC
adapter; 3 hours to 90% capacity |
| |
AC operation |
AC adaptor 90-260VAC, 50/60Hz |
|
Adaptor voltage |
5 VDC output to
camera |
| |
Operating temperature range |
32°F to 122°F (0°C to 50°C) |
|
Humidity |
-40°F to 158°F
(-40°C to 70°C) |
| |
Shock |
Operating and Storage 20% to 80%,
non-condensing , IEC 359 25G, IEC 68 2-29 |
|
Vibration |
2G, IEC 68-2-6 |
| |
Dimensions / Weight |
8.8" x 3.1" x 3.3" (223mm x 79mm
x 83mm) / 12oz., (340g), including battery |
|
Includes: |
MiniSD Card,
Li-Ion rechargeable battery with AC adaptor/charger,
QuickReport PC software, USB cable, and hand strap |
|
| FLIR IRC40 i5
Thermal Imaging Infrared Camera |
$2995.00 |
[Add to Cart] |
|
