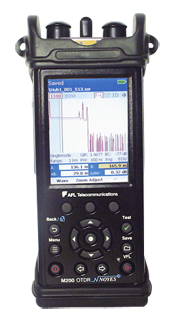

M200 Handheld OTDR
The Noyes M200 from AFL
Telecommunications offers unmatched OTDR capabilities in a handheld package
weighing less than 1 kg (2 lb). Multimode, Single-mode, and ‘Quad’
wavelength models are offered. With short dead zone and intermediate range
specifications, the M200 is ideal for Tier 2 testing of premises (building
and campus) networks or certification and troubleshooting of FTTX PON
networks. And its bright, transflective display makes it suitable for both
indoor and outdoor operation.
The M200 is based on a new
hardware/software platform that supports automatic and manual setup,
precision event analysis, dual-wavelength testing, fiber identification
using Noyes ‘TR’ test receivers, rich file naming and folder setup, 6 hour
battery life, internal and removable media data storage, and USB
connectivity. Test ports are equipped with tool-free adapters, which can be
changed in seconds. A custom-designed polycarbonate case and shock-absorbing
boot make it our most rugged OTDR ever.
Results are saved as industry
standard .SOR files, which can be viewed, printed, and analyzed on a PC
using Trace600 software (download link on right). Unit firmware, user
settings, and test results are saved in non-volatile memory. Thus the M200
may be stored with battery removed for an extended period of time and still
be up and running in seconds when needed.
| - Handheld, 0.9 kg (2 lb) |
| -
850/1300/1310/1550 nm |
| -
1.5 m (typ.) event dead zone |
| -
22 dB (MM), 26 dB (SM) dynamic range |
| -
Integrated VFL (650 nm) |
| -
Tool-Free, Switchable Adapters (ST/SC/FC) |
| -
Bellcore (GR-196) .SOR file format |
| -
Compact Flash Memory Card |
| -
Tool-Free LiIon Battery (6 Hour Life) |
| -
Transflective (Indoor/Outdoor) Touch screen Display |
|
-
USB Function Port (Connects to PC w/Cable)
|
|
- USB Host Port (Accepts USB Flash Drives)
New Feature!
|
| - Tier 2 testing of premises networks |
| - FTTX PON certification and trouble-shooting |
| - Fast Fault location |
| - Splice Verification |
| - Network Documentation |
|
- A Rugged, Soft-Sided Carry Case with Shoulder Strap |
|
- 110/220 VAC Power Adapter with Country-Specific Power Cord |
|
- User Guide |
|
|
|
-
M200-K-QUAD
(1)
ST, (2)SC and (1)FC* |
|
-
M200-K-MM
ST
and SC* |
|
- M200-K-SM
SC
and FC* |
|
*LC test port
adapters are available (order separately) |
|
