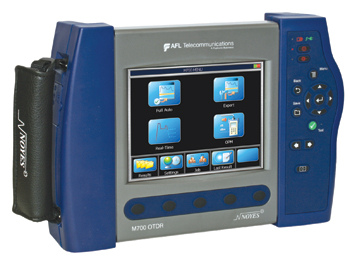

M700 Single-mode Compact OTDR
|
 |
TouchScreen Monitor
See Below for icon descriptions |
| - |
LSA Measurements in Expert mode. |
| -
|
Pass/Fail Event and Link Thresholds settings.
|
| - |
OTDR results saved as industry standard (GR-196) .SOR files.
|
| -
|
OPM stores results and displays up to three wavelengths
simultaneously. |
| - |
Large, high bright, sunlight readable, touchscreen. |
|
|
Compact, full featured, single-mode OTDR
The Noyes M700 from AFL Telecommunications includes an
integrated Visual Fault Locator (VFL), an Optical Power
Meter (OPM) displaying up to three wavelengths
simultaneously, and a large transflective touch screen
display suitable for both indoor and outdoor operation.
The M700 OTDR supports Real-Time, Full-Auto, and Expert
(manual) modes, precision event analysis,
dual-wavelength testing, rich file naming, and an
intuitive job set-up functionality. In addition to OTDR
event analysis, pass/fail acceptance values, and
marginal warning, specific values can be set to alert
the test operator of failing or marginal events. Using
one of the Least Squares Approximation (LSA) loss
methods, events may be added or deleted manually.
|
M700 Contains: |
|
|
M700 Single-mode OTDR |
1.25/2.5-mm VFL/OPM |
| |
USB Drive |
Universal Adapters |
| |
OTDR Trace analysis/OPM
loss |
SC/FC/LC OTDR adapter |
| |
Reporting Software |
Users Guide |
| |
AC Adapter |
Soft Case |
|
|
|
| AFL M700-20U-01
M700 OTDR, SM 1310/1550nm, Soft case |
$7310.00 |
[Add to Cart] |
| AFL M700-21U-01 M700 OTDR,
SM, 1310/1550/1625nm, Soft case |
$9879.00 |
[Add to Cart] |
|
TouchScreen
Icons and Descriptions: |
 |
|
Full Auto:
The recommended mode for users who are not
familiar with OTDR operation. In the Full Auto
OTDR mode, OTDR parameters such as Range, Pulse
Width, & Averaging Time are automatic. |
|
 |
|
Real-Time: OTDR mode is for real-time
troubleshooting. Note that the Wavelength
setting can only be set to singular wavelengths.
Range, Pulse Width, & Filter parameters are user
set |
|
 |
|
Expert: OTDR mode is available for experienced
users. You can set Range, Pulse Width, &
Averaging Time manually or automatic. You can
enable the event table or disable events |
|
 |
|
OPM:
Used to perform Optical Power Meter Measurements |
|
 |
|
Results: Provides the file manager function to
handle the results of OTDR and OPM test. |
|
 |
|
Settings:
Allows the user to adjust general settings and
displays the M700 version information |
|
 |
|
Job:
For identifying job settings, (drives, folders,
jobs, routes (end locations) cables, test
equipment location & operators |
|
|
|
Last
Results: Displays the last view test result |
|
|
|
General M700 Specification: |
|
|
Emitter Type |
|
Laser |
|
|
Safety
Class |
|
Class 1 FDA 21 CFR 1040.0 & 1040.11 |
|
|
Center
Wavelengths |
|
1310/1550nm |
|
|
Dynamic
Range (SNR=1) |
|
38/36dB (1310/1550nm) |
|
|
Event
Dead Zone |
|
0.9m |
|
|
Attenuation Dead Zone |
|
5.5m |
|
|
Pulse
Widths |
|
5, 10, 30, 100, 300,nm 1, 3, 10, 20µs |
|
|
Distance Sampling Points |
|
Max 64,000 points |
|
|
Data
Point Spacing |
|
0.125m (range ≤ 2km)
0.25m (range = 4km)
0.5m (range = 8km)
Range # of data points (range ≥ 16km) |
|
|
Range Settings |
|
250m to 256km |
|
|
Group
Index of Refraction |
|
1.4000 to 1.6000 |
|
|
Distance Uncertainty |
|
(1 + 0.0005% x distance = data point spacing) |
|
|
Trace
File Format |
|
Bellcore GR-196 version 1.1 |
|
|
Trace File Storage
Media |
|
Internal Flash Drive
USB Flash Drive
Downloadable from OTDR directly to PC |
|
|
Trace
file storage capacity |
|
Internal 1000 fibers |
|
|
Data tranfer to PC |
|
USB |
|
|
OTDR
Modes |
|
Full Auto, Real Time, Expert |
|
|
Tool
Free Adapters |
|
Modular Cleanable SC/ST/FC/LC |
|
|
|
|
|
|
|
|
|
