ValidatorPro
NT1155 & NT1150
 |

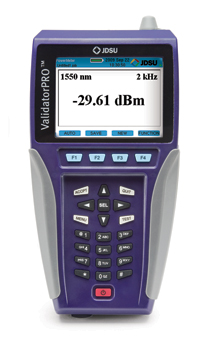

ValidatorPRO NT1155 & NT1150 Ethernet Speed Certifier with integrated
Optical Power Meter
Click for larger image |
Building on the capabilities of the JDSU
Validator and Validator-NT, the JDSU
ValidatorPRO series of Ethernet Network Management Tools offers a complete
solution to test copper and fiber Ethernet cables. The ValidatorPRO Ethernet
speed certifier with integrated optical power meter and accompanying Plan-Um
cable management software delivers the power to test both copper and fiber
cabling, determine if cables can support Gigabit Ethernet, and perform
troubleshooting for cable installations. The ValidatorPRO performs all tests
offered by the Validator and Validator-NT, including speed certifying the
data-carrying capabilities of copper Ethernet network cables up to 1 Gb/s by
testing for noise in the network, detecting faults in the cabling wiring,
and ensuring that cables can support the speed capabilities of active
equipment.
To certify Ethernet speed performance of cable runs, the ValidatorPRO series
of
handheld testers conducts bit error rate (BER) tests by sending data packets
down specified cable runs at defined data rates to check for errors at the
maximum throughput of the link. The ValidatorPRO also reports on signal
quality that can impact high-speed data transmission by measuring
signal-to-noise ratio (SNR). Skew measurements provide the signal time delay
between pairs that can impact Ethernet data transmission. The ValidatorPRO
also provides continuity testing that detects opens, shorts, miswires, split
pairs, reversals, and high-resistance faults while accurately measuring
distance to faults and total cable length.
The ValidatorPRO includes an integrated optical power meter that measures
optical power at 850/1300/1310/1490/1550 nm on multimode or single-mode
fiber to address an increasing number of Ethernet networks that now include
optical links.
The ValidatorPRO-NT version includes a comprehensive set of features for
testing a network’s active network capabilities: measure Power over Ethernet
(PoE) to ensure the correct power is available on the correct pins, use port
discovery to ensure the correct speed
and duplex capability are available; connect at gigabit Ethernet and run
ping tests to verify connectivity to IP hosts; discover network devices
using Cisco Discovery Protocol (CDP) or Link Layer Discovery Protocol (LLDP),
discovery and display essential information regarding functionality and
configuration of 802.11 b/g/n networks.
|
|
- |
Measures optical power
on single mode and multimode fiber |
|
-
|
Conducts BER testing to speed certify
Ethernet data transmission speed up to 1000BASE-T (1 Gb/s) |
|
- |
Measures SNR and skew to uncover
impairments to electrical Ethernet data transmission |
|
- |
Tests for opens, shorts, split pairs,
miswires, and reversals and measures distance to opens and
shorts—supports all copper network, telco, and coax cables |
|
- |
Measure PoE voltage and current (NT
only) |
|
- |
Performs port discovery to detect
advertised Ethernet speed and displays capabilities of network
devices (NT only) |
|
- |
Pings network devices to verify
connectivity to active equipment (NT only) |
|
- |
Discover and display essential
information regarding functionality of 802.11 b/g/n wireless devices
(NT only) |
|
- |
Includes Plan-Um® software to create
network layout; document cable tests; show network topology; and
record moves, adds, and changes |
|
- |
Certify speed capability of
electrical Ethernet cable runs to support 10/100/1000 Mb/s Ethernet
applications |
|
-
|
Ensure
configuration and connectivity with active network devices |
|
- |
Measure
optical power and insertion loss |
|
- |
Discover
and display essential information regarding functionality of 802.11
b/g/n wireless devices |
|
- |
Document
network topology including |
|
ValidatorPRO &
ValidatorPRO-NT Include: |
|
- |
One smart remote |
|
-
|
One
set 1-8 wiremapping remotes (RJ11/RJ45) (TP612) |
|
- |
Two
lithium-ion rechargeable batteries |
|
- |
Two
universal AC adapter/charger units |
|
- |
One
1.83 m (72 in) USB client-to-PC connection cable (series A plug to
series B plug) |
| - |
Two
19 cm (7.5 in) RJ12-to-RJ12 cables for no-fault connection to RJ11
or RJ45 jacks |
| - |
Two
30.48 cm (1 ft) patch cables with RJ45 connectors |
| - |
Two
60.96 cm (2 ft) RJ45 to 8 alligator clips cord sets |
| - |
Two
sacrificial cables for RJ45 mod plug |
| - |
One
coupler F-jack to F-jack |
| - |
USB
drive including Plan-Um cabling installation and planning software |
| - |
User
guide (product manual),
firmware, and quick start guide |
| - |
Deluxe
carrying case |
| - |
Printed
quick start guide |
| - |
100
“speed certified” cable labels |
| - |
One 12 V
vehicle charger |
|
|
|
- |
Display |
Color back-lit FSTN liquid crystal display (LCD) Operating System Linux |
|
-
|
Operating Systems |
Full navigations set with alphanumeric data entry and soft-key
functions |
|
- |
Keypad |
Non-volatile memory: internal NAND flash memory |
|
- |
Memory |
128 MByte DDR2 SDRAM memory |
|
- |
Languages Supported |
English, French, Italian, German, Spanish, Portuguese, Korean, and
Simplified Chinese Interfaces |
| |
|
|
| |
Interfaces: |
|
|
- |
USB 2.0 host
port (for external memory sticks) |
|
- |
Optical Power meter for 850/1300/1310/1490/1550 nm wavelengths. -45
to +10dBm dynamic range for 850nm and -50 to +10dBm for all other
frequencies. ±0.20dB accuracy. ±0.06dB linearity. Measured in dB or
dBm. Auto wavelength selection with 270, 330, 1k, 2kHz modulation |
| - |
Wi-Fi 2.4 GHz 802.11 b/g/n standards with MIMO technology. Support
64/128-bit WEP encryption, WPA, WPA2, and CISCO CCX security |
| |
|
|
| |
Test Connectors |
|
| - |
8-position shielded modular jack
(data) |
| - |
6-position modular jack (telephone) |
| - |
F-coax (video) Male connector w/sacrificial adapter |
| - |
2.5 mm universal push pull (UPP) (Fiber) |
| |
|
|
| |
Cable Types |
|
| - |
Shielded or unshielded twisted pair
network cable |
| - |
Telephone |
| - |
Coax |
| - |
Single mode and multi mode fiber cable |
| |
|
|
|
Cable Length |
| |
Maximum
cable length: |
100 meters (1,500 ft) |
| |
Maximum cable length for testing of split pairs:
|
Up to 100 m (327 ft) depending upon cable type |
| |
Cable length accuracy |
±5% (after performing both
unit and cable calibration) |
| |
Electrical |
|
| |
Power sources: |
AC adapter; auto cigarette lighter
power adapter; lithium-ion rechargeable,
removable batteries |
| |
Environmental |
|
| |
Operating temperature |
0 to 50°C (32 to 122°F)
(normal operation, not charging battery)
0 to 45°C (32 to 113°F) (charging battery) |
| |
Storage temperature |
–20 to 60°C (–4 to 140°F) |
| |
Operating humidity |
10 to 85% RH,
non-condensing |
| |
Shock and Vibration minimum |
2 ft drop
(free fall from stationary) on concrete |
| |
Safety: |
EN 61010-1 |
| |
EMI/EMC: |
EN 61326-1:2006 |
|
Altitude: |
4000 m |
| |
Agency Certifications & Compliance |
| |
Main and Remote units: |
CE |
| |
Battery: |
CE |
| |
AC wall adapter: |
CE, PSE, UL |
| |
Auto cigarette lighter power: |
CE |
| |
Calibration |
| |
Traceable Calibration Period: |
2 Years |
| |
Self-Calibration Period: |
30 days for unit calibration
Perform cable calibration whenever
changing cable type being measured. |
| |
Physical |
| |
Main Unit Size |
22.9 x 11.4 x 5.3 cm (9 x 4.5 x 1.8 in) |
| |
Weight |
710 gm (1 lb 9 oz) with battery |
| |
Remote |
| |
Size |
14.2 x 11.2 x 4.4 cm (5.6 x 4.4 x 1.8 in) |
| |
Weight |
341 gm (12 oz) with battery |
|
|
|
|
| JDSU NT1150 ValidatorPRO
Ethernet Speed Certifier with integrated Optical Power Meter |
$1,695.00 |
[Add to Cart] |
| JDSU NT1155 ValidatorPRO-NT
Ethernet Speed Certifier with Integrated Optical Power Meter including
Active Network Tests |
$2,395.00 |
[Add to Cart] |
|
|
|
|
|
|
|
|
|
|
|
