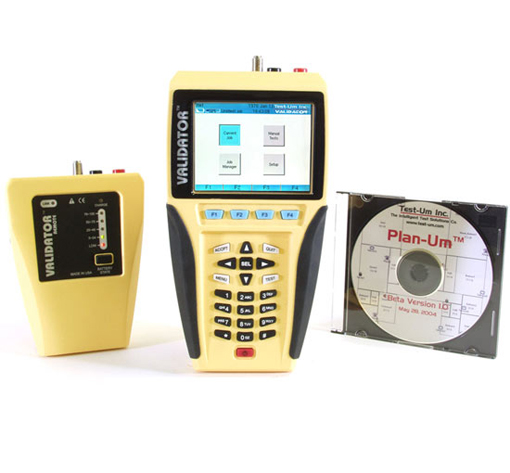

JDSU Validator cable certifier
Click Image to
Enlarge
|
Relief from high cost Certification is
here
|
Validator gives you 4 steps to more
professional, productive and profitable installations... |
| - Tests to TIA 568/570 interconnect
standards |
| - Certifies CAT 5, CAT 5e, CAT 6 cable runs
to be IEEE802.3 compliant to 1 gigabit speed |
| - Tests coax, telephone, audio and security
cables |
| - Powerful Plan-Um design software |
| - Creats and prints job reports |
| - Wiremaps for new or existing cable
systems |
| - Simple to use |
|
- Validator main unit and Smart
remote |
| - 2 Lithium ion rechargeable long life batteries |
| - 2 AC adapter/charger
units |
| - 4 adapter cable assemblies |
| - USB cable assembly |
| - Compact flash card |
| - Plan-um design layout software |
| - Deluxe carrying case with cushioned sides |
|
JDSU Validator-NT
|
Click here for Validator Demo
|
|
Individual Ethernet cable runs up to 1
Gigabit Speed per IEEE802.3 specifications.
Test for TIA568 Interconnect problems. Determine
fault locations, cable length and delay or noise
conditions.
Produce and print cable test schedules and cable
test results. Qualify lines for VoIP usage. |
|
Active components of your network on Ithe other end of the cable. Identify all types
of equipment and port service discovery with
advertised speed ratings and DHCP negotiation.
Access IP addresses, ping equipment
and flash hubs/switches for positive port
location. |
|
Links between nodes at Gigabit speed.
Check IP addresses on netmask, Gateway/routers
and domain name servers. Confirm links between
equipment for changes or upgrades. |
|
Fluke Networks CableIQ Qualification Tester
|
Click image to Enlarge
|
CableIQ at a glance
|
Sees if your existing cabling has the bandwidth
to support voice, 10/100, VoIP or Gigabit Ethernet |
|
Shows why existing cabling cannot support the
network's bandwidth requirement (e.g. crosstalk at 11 meters) |
Detects what's at the end of any cable and
displays device configuration
|
|
Unused switch ports that can be
reallocated |
|
Wiring
configuration and shows distance to faults with Intelligent Wiremap |
All copper cabling media:
twisted-pair, coax, and audio cabling
|
|
|
| CableIQ
Qualification Tester Includes CableIQ with
remote adapter, CableIQ Reporter software CD, (2)
RJ45-RJ45 patch cord, USB cable, coax "F" push-on
adapter, owners CD and quick start guide, (4) AA
batteries, soft carry case |
| |
| CableIQ Advanced
IT Kit Includes CableIQ main unit with remote
adapter, CableIQ Reporter software CD, IntelliTone 200
Digital Probe, Remote IDs #2-7, (2) RJ45-RJ45 patch
cord, USB cable, coax "F" push-on adapter, 75-ohm coax
patch cord, RJ45/11 universal coupler, RJ11-RJ11 patch
cord, owners CD and quick start guide, (4) AA batteries,
test accessory soft pouch, hard carry case |
Fluke DTX 1800 CableAnalyzer Series
|
Click image to Enlarge |
DTX CableAnalyzer
Overview: It all starts with 9-second Cat 6 Auto test that means you can meet TIA-568-B
certification requirements and receive structured cabling warranties much
faster than ever before. With all this speed also comes increased accuracy.
The DTX is the only independently verified TIA Accuracy Level IV tester to
obtain UL accuracy classification. And, you'll be prepared for emerging new
cabling technologies such as 10Gig Ethernet thanks to DTX's 900MHz frequency
range. With the DTX Series, you're ready for whatever the world throws at
you - today and tomorrow.
|
- Exceeds spec requirements for Cat 5e/6 and Class E/D/F
|
| - Independently verified by UL to meet ISO Level IV and proposed TIA
Level IIIe Accuracy requirements |
| - Three times faster than existing testers with
9-second Cat 6 Auto test
|
| - Advanced time-saving diagnostics pinpoints fault and suggests
corrective actions
|
| - 900 MHz future-proofs your investment for future applications such
as 10 Gigabit Ethernet, Class F and CATV |
| - Resident fiber modules lets you switch between copper and fiber with
the push of a button
|
| - DTX significantly reduces total certification costs by as much as
33% a year |
|
|
Fluke DTX-1800 Fluke Networks CableAnalyzer 900MHZ |
$7,645.00 |
[Add to Cart] |
|
Fluke DTX-1800M Fluke Networks CableAnalyzer 900MHZ with Multimode
Probes |
$10,669.00 |
[Add to Cart] |
|
Fluke DTX-1800MS Fluke Networks CableAnalyzer 900MHZ with Multimode
and Singlemode Probes |
$15,699.00 |
[Add to Cart] |
FrameScope 350 Network Performance
Analyzer
Click image to enlarge
FrameScope 350
Downloadable PDF
|
- First-of-its-kind innovative performance
test suite that measures & rates the response times of key network
resources such as web, file,
e-mail, print DNS and DHCP servers |
| - Verifies performance of vital network
services as well as full Category 6 cable certification |
| - Complete network testing that
quickly isolates protocol, configuration, performance and cabling
problems |
| - Network discovery lets
users survey the network and generate a complete list of workstations,
switches, routers, servers and other network devices |
| - Remote control through a
web browser allows operation from location on the network |
| - Detailed network test reports via the
web interface and the included ScopeData Pro software produces
graphical cable test reports |
| - Easy to use
color touch screen interface minimizes training requirements |
|
|
N2610A
FrameScope 350 Network Performance Analyzer |
$6,080.00 |
[Add to Cart]
|
|
N2610A-100 Dual Remote 350 adds full Cat
6 testing to the Framescope |
$2,035.00 |
[Add to Cart]
|
|
|
