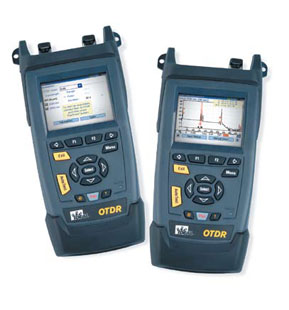

Ideal 33-960
Series Micro OTDR's
 |
|
|
Product Features: |
|
- |
Short Attenuation and Event Dead Zones
for accurate location and characterization of events |
|
- |
Autotest Function
provides simple one-button operation |
| -
|
Fast Data Acquisition
important for troubleshooting intermittent problems |
| -
|
Interchangeable FiberAdapters
Easy on-site replacement |
| -
|
USB port
Convenient data transfer to PC |
| - |
Certifying OTDR Option
For tier-2 certification |
| - |
Optional Macro Bend detection
accurately detects macro bends in singlemode fiber |
| - |
Fiber Inspection Probe ready
includes port for video inspection probes |
| |
|
| |
For Detailed Specifications click Here |
|
|
33-960 Series
Micro OTDR's |
Designed with installers in mind, 33-960 Series Micro
OTDRs offer excellent performance and ease of use in a truly
handheld, lightweight and rugged package. Available as
either an 850/1300 nm (multimode) or 850/1300/1310/1550 nm
(multimode and single mode) OTDR, they are ideally suited
for the installation and troubleshooting of LAN, campus and
WAN fiber networks. Both models combine high measurement
precision with the user friendliness of one-button operation
resulting in accurate characterization of connectors and
splices in addition to fast and reliable fault location.
With the MB option, these OTDRs provide clear PASS/FAIL
indications. Distance, loss and ORL for each event is
reported in a trace summary table making full certification
of the link possible. Each OTDR is shipped in a kit
containing everything you need to get started on the job,
including a ruggedised carry case, PC software, rechargeable
batteries and wall charger. |
| |
|
Target Applications: |
| |
Tier-2 certification of
premise and enterprise networks that require OTDR testing.
The feature set of 33-960 Series Micro OTDRs is perfectly
matched to this application.
Increasing bandwidths
in LAN and campus fiber cabling demands more in-depth
testing. The 33-960 Series delivers all necessary test
functions in an extremely user-friendly instrument.
Troubleshooting of
fiber links requires an accurate, easy to use OTDR. The high
specification and small form factor of the 33-960 Series
makes them perfect for troubleshooting installations.
WAN and FTTH cabling
requires an OTDR with a high dynamic range. Offering a
dynamic range up to 29 dB, the 33-960 Series is more than
capable of the job. |
 |
|
- |
Short attenuation and event dead zones for
accurate location and characterization of events. Suitable
for even the shortest fiber links. |
|
- |
Two wavelength “autotest” function with
automatic adjustment of test parameters |
|
- |
Manual mode allows users to define all test
parameters |
|
- |
Real-time mode for troubleshooting. Useful
when trying to identify intermittent problems. |
|
- |
Clear characterization of events |
|
- |
Fast data acquisition |
|
|
- |
Interchangeable fiber adapters with a wide
variety of available configurations |
|
- |
PC Software included. Reports in Bellcore™
format Color display |
|
- |
USB connection to thumbdrives or PCs. |
|
- |
Optional Certifying OTDR firmware |
|
- |
Optional macro bend detection on singlemode
fibers |
|
- |
Video inspection probe ready |
|
| |
|
Comprehensive PC Software |
| |
|
Multilingual PC software is included as standard in all
kits. This software is used to manage OTDR traces and
test data. Downloads from the OTDR can be made to a memory
stick or directly through the USB interface to a PC.
An AUTO mode makes interpretation of traces straightforward.
The EXPERT mode allows more experienced users to evaluate
test data using up to 4 markers for attenuation in dB and
dB/km, optical return loss and reflection. With
adjustable PASS/FAIL limits, the software gives a clear
indication of the quality of links being tested. The PC
software allows export in Bellcore™ format, making test
results compatible with world wide OTDR standards. The kit
also includes a viewer for bi-directional tests, allowing
the user to overlay A => B / B => A plots. Test results can
also be printed or stored as PDF files. |
| |
|
Certifying OTDR and
Macro Bend - Detector Option |
| |
|
The
Certifying OTDR option turns 33-960 Series OTDRs
into full certifying instruments with clear
PASS/FAIL indication for every link. A single
summary screen delivers all key measurement values.
Installations that specify “Tier-2” certification
will find this option invaluable as it gives instant
PASS/FAIL results for every link without having to
resort to cumbersome manual evaluation of traces. It
also benefits less experienced users by providing
clear decision points on whether a link is good or
bad. Order 33-960-10MB for the multimode OTDR
with certification firmware or 33-960-30MB for the
quad MM/SM OTDR with certification firmware. Please
note that this option cannot be installed in the
field. It is a factory installed option only, so
wherever possible should be ordered at the same time
as the main OTDR.
|
|
|
Ideal Industries
33-960-10
MM ODTR with 850 and 1300nm for Multimode Fiber Dual
Wavelength Multimode OTDR (850/1300nm) with High Dynamic
Ranges, Short Pulse Widths and Very Short Dead Zones. |
$10493.60 |
[Add to Cart] |
|
Includes: MM OTDR with 850/1300nm, 2 Li-Ion rechargeable
Batteries, 1 AC/DC Power Adapter, 1 SC Adapter, PC Software,
CD ROM User Manual and Quick Reference Guide, Hard Carrying
Case. PLEASE NOTE: OTDR will be shipped with a SC adapter.
For other connector types please see accessory list below.
Includes pre-installed video probe firmware. NOTE: The video
probe has to be ordered separately. |
|
Ideal Industries
33-960-30
Quad ODTR with 850/1300nm for Multimode Fiber and
1310/1550nm for Single mode Fiber Quad Wavelength OTDR
features a combination of 850/1300nm and 1310/1550nm
Wavelength. Compact Size with High Dynamic Ranges, Short
Pulse Widths and Very Short Dead Zones. |
$13763.05 |
[Add to Cart] |
|
Includes: OTDR Unit with 850/1300nm MM Wavelength and
1310/1550 SM Wavelength, 2 Li-Ion rechargeable Batteries, 1
AC/DC Power Adapter, 1 SC- and FC Adapter, PC Software, CD
ROM User Manual and Quick Reference Guide, Hard Carrying
Case. PLEASE NOTE: OTDR will be shipped with a SC/FC
adapter. For other connector types please see accessory list
below. Includes pre-installed video probe firmware. NOTE:
The video probe has to be ordered separately. |
|
Ideal Industries 33-960-10MB
Multimode OTDR kit with Firmware Upgrade for
Macro Bend and PASS/FAIL Certifying Option* |
$11407.33 |
[Add to Cart] |
|
Ideal Industries
33-960-30MB
Quad multimode/single mode OTDR kit with Firmware Upgrade
for Macro Bend and PASS/FAIL Certifying Option*
|
$14830.10 |
[Add to Cart] |
|
*Please note: Factory installed option.
This option should be ordered at the same time as the OTDR.
Service and handling charges will apply should OTDR
subsequently need to returned to IDEAL for this firmware
upgrade. |
33-960 Micro OTDR Accessories
| Ideal
Industries 33-961-10 FC adapter cap Narrow |
$167.00 |
[Add to Cart] |
|
Ideal Industries
33-961-20 SC adapter |
$167.00 |
[Add to Cart] |
|
Ideal Industries
33-961-30 ST adapter |
$167.00 |
[Add to Cart] |
|
Ideal Industries
33-961-40 E2000 adapter |
$385.00 |
[Add to Cart] |
|
Ideal Industries
33-961-50 Din 47256 adapter |
$248.65 |
[Add to Cart] |
|
Ideal Industries
33-961-60 HMS-10/AG adapter |
$248.65 |
[Add to Cart] |
|
Ideal Industries
33-960-BP Researchable Lithium Ion battery |
$141.05 |
[Add to Cart] |
|
Ideal Industries
33-960-KB Foldable USB Keyboard |
$120.75 |
[Add to Cart] |
|
Ideal Industries
1019-00-1522 universal charger 110/230 V, all socket types |
$56.00 |
[Add to Cart]
|
|
33-960-VP Video
Inspection Probe |
| |
|
 |
Poor cleanliness is the number one reason for failures
in fiber optic networks. The optional video probe helps
users document and troubleshoot fiber optic
installations by providing visual inspection of
connectors. Unlike optical microscopes, video
microscopes offer 100% eyesight protection plus the
ability to store connector images on the OTDR for later
download and documentation. Magnifications of 200x
and 400x deliver crystal clear images
of connectors. In addition, a wide range of probe tips
makes the video probe a useful diagnostic tool in many
different applications. The 33-960-VP Video
Inspection Probe is compatible with all 33-960 Series
OTDRs which incorporate a video probe port
as standard - no upgrade is required to drive the probe. |
| |
|
| Ideal
Industries 33-960-VP Video Probe with 200X
and 400X Magnification Includes: FC/SC and Universal 2.5mm Patch cord
Adapter, CD-ROM User Manual. |
$2209.85 |
