EZ-RJ45 Connectors
Click for larger image |
The EZ-RJ45 Connectors, simplify twisted pair
terminations by allowing the wire to be inserted through the connector
and out the front. This allows the technician to easily verify the
proper wiring order. Electrical performance of the termination is
optimized by pulling the connector down over the cable jacket and
seating it tightly in the rear of the connector. It also guarantees that
the wires will be properly flush to the front of the connector.

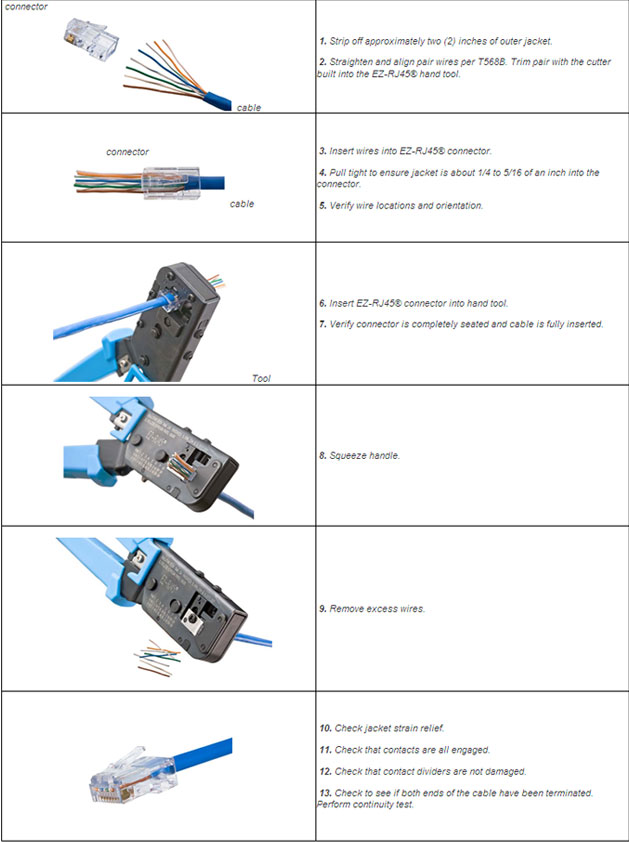

Click
here for instructions
|
| Gem Electronics CAT5-EZP (50 Pack)
Category 5E Modular Connector |
$ (50 Pack) |
[Add to Cart] |
| Gem Electronics CAT5-EZSTP (10 Pack)
Category 5 Shielded Modular Connector |
$35.00 (10 Pack) |
[Add to Cart] |
| Gem Electronics CAT6-EZPTP (10 Pack)
Category 6 Modular Connector |
$13.50 (10 Pack) |
[Add to Cart] |

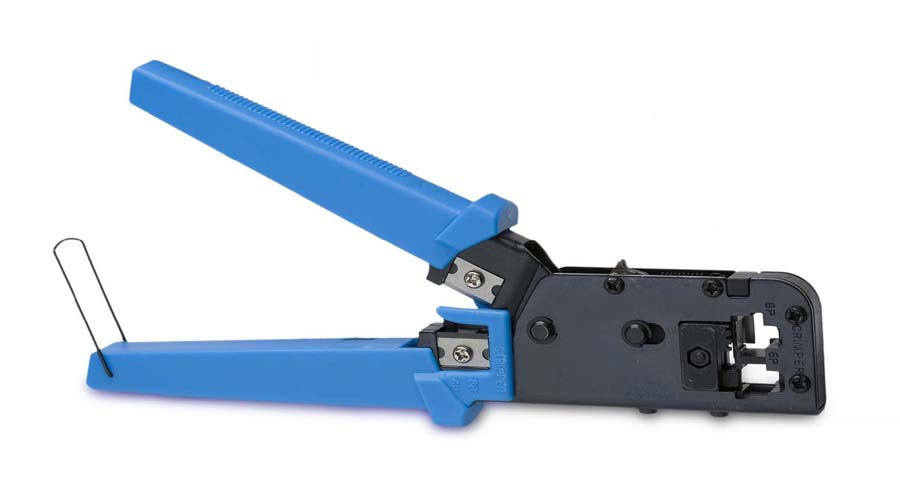

| Gem Electronics
GET-EZCT Crimp Tool, EZ-RJ45
Click for Image |
$85.00 |
[Add to Cart] |
Modular Ends
Click for larger image |
RJ45 and RJ11
Modular Plugs (Sold in 100 packs) |
| 5-554720-3 RJ45 8
Conductor-26-24AWG Solid |
$38.00/c |
[Add
to Cart] |
| 5-554739-3 RJ45 8
Conductor-26-24AWG Stranded |
$35.00/c |
[Add
to Cart] |
| 5-555042-3 RJ11 6
Conductor-26-24AWG Solid |
$20.00/c |
[Add
to Cart] |
| 5-641337-3
RJ11 6
Conductor-26-24AWG Stranded |
$21.50/c |
[Add
to Cart] |
Category 6 Modular Plug (100 Per box)
Click for larger image
|
Plugs accept a maximum insulation of .043 inches and a jacket O.D. between
0.20 and 0.24 inches
|
|
EZ-RJ45® Cat 5/5e Connector
|
 |
The patented EZ-RJ45® Connector simplifies twisted
pair terminations by allowing the wires to be
inserted through the connector and out the front.
This allows the technician to easily verify the
proper wiring order. Electrical performance of the
termination is optimized by pulling the connector
down over the cable jacket and seating it tightly in
the rear of the connector. Reducing the distance
between the wire twists and contacts improves
performance! Reduces scrap, no wasted crimps. More
reliable, higher performance. Crimp with the
patented EZ-RJ45® Crimp Tool...crimps and trims in
one cycle. Manufactured in the USA.
| |
Features: |
|
|
-
|
Thru holes allow wire
pairs to be inserted thru front of
connector. |
|
-
|
Works with solid or stranded wire. |
|
- |
Simple one piece design...no bars or liners.
|
|
- |
FCC compliant, UL rated. |
|
- |
Use in category 3, 5, 5E compliant data
networks. |
|
- |
EZ to verify wire sequence. |
|
- |
Faster terminations. |
|
|
| Platinum Tools 202003J
EZ-RJ45® Connectors, 100 Pc. Jar |
$62.00 |
[Add to Cart] |
|
EZ-RJ45® Cat 6+ Connectors
|
 |
The new patented EZ-RJ45® Cat 6+ Connector
simplifies twisted pair terminations by allowing the
wires to be inserted through the connector and out
the front. This allows the technician to easily
verify the proper wiring order. Electrical
performance of the termination is optimized by
pulling the connector down over the cable jacket and
seating it tightly in the rear of the connector. By
reducing the distance between the wire twists and
contacts, performance is optimized! Crimp with the
patented EZ-RJ45® Crimp Tool... crimps and trims in
one cycle. (See Part Number 100 004 or 100 044 EZ-RJPRO).
Manufactured in the USA. Patented.
| |
Features: |
|
|
-
|
For use in Cat 6
compliant data networks. |
|
-
|
Category 6 performance per EIA/TIA B.2.
|
|
- |
EZ to verify wire sequence. |
|
- |
Works with solid or stranded wire. |
|
- |
Faster terminations with reduced scrap.
|
|
- |
FCC compliant, UL rated. |
|
- |
Simple one piece design...no bars or liners. |
|
|
|
Platinum Tools
202010J EZ-RJ45® Cat 6+ Connectors, 100 Pc. Jar |
$70.00 |
[Add to Cart] |
|
Shielded EZ-RJ45®
|
 |
The EZ-RJ45® fully shielded plug, with an internal
ground, combines the performance advantage exclusive
to the EZ-RJ45® design with the performance
advantage inherent to shielded products to provide
an unparalleled solution for the market.
Applications: Hospitals < EMI / RFI >, Manufacturing
plants, Casinos, Broadcast studios, Buildings in
proximity to microwave towers, electrical power
stations or towers.
| |
Features: |
|
|
-
|
EZ-RJ45® design allows
the wires to pass through the connector so
the twists in each pair can be pulled closer
to the contacts than conventional plugs. |
|
-
|
Maintaining the twists to the point of
termination significantly decreases
crosstalk and markedly increases
performance. |
|
- |
Fully shielded products provide reduced
pair-to-pair crosstalk, alien crosstalk, and
considerably improved immunity to noise at
all frequencies. |
|
- |
Significantly improve Shannon capacity. |
|
- |
Substantially improve noise immunity at all
frequencies, especially above 30 MHz when
cable balance starts to significantly
degrade. |
|
|
| Platinum Tools 100020
Shielded EZ-RJ45® Bag of 50 |
$77.50 |
[Add to Cart] |
|
Connector Jars
|
|
| |
Features: |
|
|
-
|
Provides a convenient,
re-useable container for the installation
professional. |
|
|
| Platinum Tools 202035J
Strain Relief for EZ-RJ45® Cat 5e Connector. Jar of 100. |
$24.00 |
[Add to Cart] |
| Platinum Tools 202036J
Strain Relief EZ-RJ45® Cat 6+ Connectors & Shielded Cat 5e Connector. Jar of
100. |
$24.00 |
[Add to Cart] |
|
EZ-RJ12/11 Connector
|
 |
The new, patented EZ-RJ12/11 Connector simplifies
twisted pair terminations by allowing the wires to
be inserted through the connector and out the front.
This allows the technician to easily verify the
proper wiring order prior to termination. Use the
EZ-RJPRO™ Crimp Tool (P/N 100044) for single cycle
crimping and trimming of the excess wire. FCC
compliant and UL rated. Made in the USA
| |
Features: |
|
|
-
|
For use in telephone &
security installations. |
|
-
|
Faster, easier terminations with reduced scrap. |
|
- |
For specialized telephone installations & communications
equipment. |
|
- |
For applications requiring custom/specific wire
configurations. |
|
- |
Works on solid or stranded wire. |
|
|
| Platinum Tools 100026C
EZ-RJ12/11 Connectors, 50 Pc. Clamshell |
$17.85 |
[Add to Cart] |
| Platinum Tools 100026B
EZ-RJ12-11Connectiors, 100 Pc. Box |
$33.95 |
[Add to Cart] |
| Platinum Tools 105005
EZ-RJ12/11 Connectors, Bulk Package, 500 Pc. |
$170.00 |
[Add to Cart] |
| Platinum Tools 100026LTC
EZ-RJ12/11 Long Tab, 50 Pc. Clamshell |
$17.85 |
[Add to Cart] |
| Platinum Tools 100026LTB
EZ-RJ12/11 Long Tab, 100 Pc. Box |
$34.95 |
[Add to Cart] |
| Platinum Tools 105005LT
EZ-RJ12/11 Long Tab, Bulk Package, 500 Pc. |
$170.00 |
[Add to Cart] |
|
