Tempo 508S Wire Finder
Tempo 508S wire locator

Click for larger image

Great Tool for Locating Dog Fence Wire

For technicians who occasionally need to locate buried or in-wall wiring but don't require all the bells and whistles of a high priced cable locator. Compact design doesn't take up valuable truck space while easy to understand operations help avoid constantly referring to manuals. The 508S Wire Finder provides reliable results on buried cables to depths of 3 feet and lengths up to 1000 feet. The unit can even be used to determine the approximate depth of a wire or cable before you dig. Fully adjustable transmitter output and receiver gain improve system performance and locating accuracy. Wire Finder comes housed in a durable, molded carrying case with a quick reference operation guide on the inside of the lid. Affordable wire & cable locating under ground, in walls & ceilings, in all wiring industries, indoors & out.


  Product Features

- Determines the approximate depth of a wire before digging begins
- Transmitter and receiver are fully-adjustable for accurate locating
- Reliable results on buried cables to depths of 3' and lengths up to 1000'
- Quick-change test leads for use in any industry, even international power outlets
- Voltage protection allows use on live AC circuits
- Automatic shutoff prevents accidental battery discharge


  Specifications

Power Requirements: (1) 9V Each (Transmitter & Receiver, Included)
Battery Life: Transmitter: 35 Hours Nominal
  Receiver: 20 Hours Nominal
Transmitter Frequency: 447.5kHz Transmitter Power 9Vp-p (11mW)
Voltage Protection: 240VAC/500VDC
Construction: Transmitter/Receiver: High Impact ABS Plastic
  Case: Vacuum Formed Polyethylene

Dimensions:
Transmitter: 4" x 2.3" x 1"
Receiver: 6" x 2.35" x 1"
Case: 9.5" x 8" x 3"
Weight: 2.6 lbs.


Both the transmitter and receiver are housed in a durable, molded carrying case with a quick-reference operation guide on the inside of the lid.


508S Wire Finder $280.00 [Add to Cart]


Tempo Tracker II
Tempo Tracker II

Click for larger image

  Product Features

- High frequency transmitter provides range up to 4000 feet (1219 m) and depths to 7 feet (2 m).
- The transmitter offers three methods of connection: Direct, Inductive coupler, or Inductive antenna.
- Inductive coupler clamps around the wire or pipe for use on active lines or where isolating the line is not an option.
- Inductive antenna is built into the case housing and allows the transmitter to be placed on the ground over the wire path to radiate a signal down onto the conductor.
- 32" (813 mm) Lightweight receiver provides both audible and visual indications of signal strength for accurate identification.
- Transmitter output and receiver sensitivity are both fully adjustable for maximum accuracy.
- Includes transmitter assembly, Receiver assembly, Inductive coupler (clamp), Inductive antenna (built-in), Two 8 foot (2.4 m) test leads with heavy-duty alligator clips, and a durable polyethylene case.
- Optional headset is available for use in high traffic areas or other noisy environments.
- 1 year warranty.


  Specifications

Transmitter: (8) AA Batteries
  Receiver: (1) 9V Battery
Battery Life: Transmitter: 30 Hours Nominal
  Receiver: 10 Hours Nominal
Transmitter Frequency: 447.5kHz
Transmitter Power: 40Vp-p (140mW) maximum
Voltage Protection: 240VAC/500VDC
Automatic Shut Off: 90 Min. (Transmitter and Receiver)
Construction: Transmitter and Receiver: Powder Coated Aluminum
  Case: Vacuum Formed Polyethylene

Dimensions:

Transmitter: 4.25" x 3" x 3.25"
Receiver: 32" x 2.75" x 4"
Case: 33.5" x 8.25" x 3.75"
Weight: 6.7 lbs. (Complete Kit)

501 Tempo Tracker II $690.00 [Add to Cart]


Tempo Buried Line Locator
Tempo Buried Line Locator

Click for larger image

Lightweight and ergonomically-balanced for comfortable, low-stress operation. Microprocessor-based circuitry delivers increased accuracy - and features auto-gain control in all environments. Automatic signal boost makes it easy to trace lines, even those with very weak signals. Low battery indicator. Receiver may be used in active or passive mode. Traces 20 feet (6 m) underground and provides depth readings up to 15 feet (4.6 m). Receiver locates multiple passive frequencies with only a single switch setting - more convenient and time saving. Transmitter clamp fits conduit and pipe up to 3" trade size.


  Specifications

Transmitter
Operating Voltage: 0-600 VAC, 0-300 VDC
Current: 13mA (Open Line), 150mA (Live or Shorted Line)
Frequency: 33.3kHz
Operating Temperature: 0°F to 120°F (-17°C to 50°C)
Size: 7.5" x 4" x 2.1" (190.5 mm x 101.6 mm x 53 mm)
Power: 6 VDC (4 AA Batteries)
Weight: 15 oz. (425 g) (With Batteries and Clamp)

Receiver
Depth Range Measures: 0-15 ft.
Traces: 0-20 ft. ±(10% Reading + 0.2 ft.)
Depth Resolution: 0.1 ft. Increments
Passive Trace Frequency: 12Hz-24kHz
Operating Temperature: 0°F to 120°F (-17°C to 50°C)
Size: 4.1" x 8.5" x 38" (104.1 mm x 215.9 mm x 965.2 mm)
Power: 6 VDC (4 AA Batteries)
Weight: 1 lb. 12 oz. (794 g)

BLL-200 Tempo Buried Line Locator $1490.00 [Add to Cart]


Tempo Pulser Fault Locator
Tempo Pulser Fault Locator

Click for larger image

  Product Features

- Portable transmitter "pulses" a high voltage signal into the earth at the location of the faults.
- With the A-frame mounted receiver, a visual analog meter points the way to the source of the voltage.
- Multiple faults on a single wire can be identified indicating the need to replace instead of repairing.
- Extra long test leads feature heavy-duty alligator clips for use on multiple cable types.
- Includes a rechargeable transmitter, Receiver, A-frame, Ground stake, 120V AC charger, 12 volt DC (cigarette lighter) adapter, and Complete operating instructions.
- Battery-operated (1) 12v and (1) 9v included.
- 1-year warranty


  Specifications

Power Requirements: Transmitter: (1) 12V rechargeable battery
  Receiver: (1) 9V battery
Battery Life: Transmitter: 23 hours per charge
  Receiver: 200 hours
Transmitter Power: 2400VDC peak
Voltage Protection: 240VAC/400VDC
Construction: Transmitter - aluminum housing in polyethylene case
  Receiver - powder coated aluminum

Dimensions:

Transmitter: 17" x 8.5" x 6.5"  (421 mm x 215 mm x 160 mm) in case
Receiver: 33.5 x 21.75" x 3.25"
  (840 mm x 550 x 8 mm) on A-Frame
Weight: 12.5 lbs. complete

PE2003 Tempo Pulser Fault Locator $1110.00 [Add to Cart]

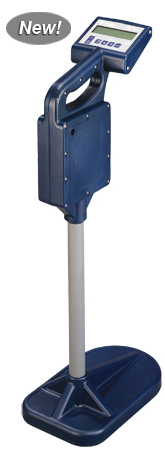

Tempo - Marker-Mate Electronic Marker Locator
Tempo Pulser Fault Locator

Click for larger image

Marker-Mate™ Electronic Marker Locator is designed to locate all brands of buried, electronic markers, including the patented Tempo Omni Marker™, and Uni Marker™ sets an industry standard with the capability of detecting all seven application-based electronic marker types simultaneously (power, water, sanitary, telephone, gas, cable TV, non-potable water.)

Marker-Mate™ is user-selectable for any of these marker types, or the Scan mode will locate the marker types simultaneously, and automatically determine which type has been detected. Marker-Mate™ scan mode, and its pinpoint accuracy, reduces time spent locating electronic markers. The Marker-Mate™ advanced pinpoint feature allows the user to adjust its detection threshold, making it possible to narrow the detection area to a precise location.

Utilizing digital signal processor technology, the Marker-Mate™ is the most sophisticated, highest performing locator available built to operate in all weather conditions. Tempo's Marker-Mate™, Omni Marker™ and Uni Marker™ a complete solution!


  Product Features

- Designed to located buried electronic markers, including omni marker and uni marker
- Five+ foot depth range
- Detects up to seven different marker types
- Scan mode provides simultaneous detection of all marker types
- User-adjustable detection threshold
- Digital signal processor accuracy
- Large-character display is easy to read
- Bar graph, numeric & audible signal strength indicators
- Speaker volume adjust
- Headphone jack
- Battery level indicator
- Low battery warning
- Adjustable time out features prolongs battery life (and can be turned off)
- Weather resistant
- Rugged construction
- Patent pending


  Specifications

Electrical Twelve AA Batteries
Battery life 20 Hours Typical

Environment

Operating Temperature -4F to 122F (-20C to 50C)
Storage Temperature -40F to 158F (-40C to 70C)
Weather Resistant

Physical

Length 30.7 in. (780mm)
Width 7.8 in. (198mm)
Height 12.8 in (325mm)
Weight 4.5 lbs. with Batteries (2kg)

Tempo - EML100 - Marker-Mate Electronic Marker Locator $805.00 [Add to Cart]


Tempo - OmniMarker - Electronic Markers
Tempo Pulser Fault Locator

Click for larger image

The Tempo Omni Marker provides an improved method to electronically mark and locate underground facilities. Unlike other marking devices that use just a single coil, the Omni Marker contains three orthogonal tuned circuits. When excited by any standard marker locator, these passive circuits produce a uniform, spherical RF field in every direction. Because of their unique patented design, the Omni Marker offers benefits that are superior to any other electronic marking system.


  Product Features

- Electronically marks and relocates buried facilities
- Unique design produces a uniform, spherical RF field in every direction
- Easily field with a signal peak directly above the marker provides precise location
- Wider field with a signal peak directly above the marker provides precise location
- Requires no particular orientation when buried
- Greater range than standard 4" ball markers
- High-reliability designs lasts as long as your buried plant
- Color coded by utility application
- Lifetime limited warranty
- Patented


  Specifications

Application Color Frequency
Power Red 169.8 kHz
Water Blue 145.7 kHz
Sanitary Green 121.6 kHz
Telephone Orange 101.4 kHz
Gas Yellow 83.0 kHz
Cable TV Orange/Black 77.0 kHz
Non-Potable Water Purple 66.35 kHz

Tempo - OmniMarker - Electronic Markers
(Choose Color at Checkout)
$8.65 [Add to Cart]


Tempo - UniMarker - Electronic Markers
Tempo Pulser Fault Locator

Click for larger image

The Tempo Uni Marker™ provides a new, economical way to electronically mark buried facilities. The Uni Marker is a passive, electronic marker that provides a unique electronic signature when activated by a marker locator and is packaged in a rugged polyethylene case that ensures years of useful life.  It even comes with a lifetime warranty.

Ideal for use on buried enclosures, hand holes, etc.  The Uni Marker™ is installed directly in the ground just above, or attached to, any object that may require future locating.  The small size and flat design also makes the Uni Marker™ especially well suited for attachment to non-metallic utility box lids, hand holes or other buried enclosures.  We’ve even included a convenient mounting bracket for common applications.


  Product Features

- Electronically marks buried facilities for later relocation
- Rugged polyethylene case ensures years for useful life
- Small size and flat design attach easily to non-metallic utility box lids, Hand holes and other buried enclosures
- Location is simple with any modern marker locator
- Range is 25%" more than other similar-style markers
- Signal peak ensures location within inches of the marker
- Color coded by utility application
- Lifetime limited warranty


  Specifications

Application Color Frequency
Power Red 169.8 kHz
Water Blue 145.7 kHz
Sanitary Green 121.6 kHz
Telephone Orange 101.4 kHz
Gas Yellow 83.0 kHz
Cable TV Orange/Black 77.0 kHz
Non-Potable Water Purple 66.35 kHz

Tempo - UniMarker - Electronic Markers
(Choose Color at Checkout)
$6.10 [Add to Cart]
