Paladin 1577PC Cable-Check
Pro
|
Click for larger image |
Product Overview:
This new universal tester maps cables, detects good
connections, opens, shorts or crosses. It works with
over 20 types of cables including: LAN & telephone,
Serial, coaxial, USB, VGA, Mini-USB, S-video, FireWire,
PS/2 keyboard & parallel printer.
|
- Auto scan or manual scan modes
|
|
- Rubber feet to grip to desk or bench to prevent
slipping |
|
- Power shuts off after 30 seconds of non-use to
conserve battery |
|
- Rugged case now with built-in handle for easy
transport |
|
- 9V battery included |
|
- Tests cables with the following terminations:
|
|
- Modular plugs: RJ45, RJ11, RJ12 UTP/STP
|
|
- Coaxial: BNCs & CATV "F" (BNC-to-F adapter
required; not included) |
|
- D-sub: 9-, 15- & 25-pin |
|
- HD-sub: 15-pin |
|
- USB: A, B, & mini 5-pin |
|
- 1394 FireWire: 4- & 6-pin |
|
- Centronics: 36-pin printer
|
|
- Universal tester for all computer cables |
|
- Quickly & easily troubleshoot or map cable
pin-out |
|
- Easy to read & understand with LED indicator
lights |
|
- True cable mapping |
|
- Affordable diagnostic tool |
|
|
1543
Click for larger image
901066
Click for larger image |
LAN ProNavigator Tester and Remote
Product Overview:
If
you’re a technician on the go, you need the LAN ProNavigator™ from Paladin
Tools! Two-piece tester includes main unit and remote with test results at
both ends.
|
- One-Button, Simple Testing (PASS/FAIL or Fault Find) |
|
- Traces Wires with Tone & Remote Lights |
|
- Quick Fault Analysis on Coax & Data
Cables |
|
- CAT-5, CAT-5e or CAT-6 (UTP/STP) Cable Testing |
|
- Detects Opens,
Shorts, Crossed Wires & Split Pairs |
|
- Compact & Lightweight, Comfortable to
Hold |
|
- Test Status Lights at Both
Ends (Main Unit & Remote) |
|
- Designed & Manufactured in the USA |
|
- Simple PASS/FAIL Test
Results in One Second Allows Technicians to Quickly Move on to the
Next Test
Site. |
|
- Generates Oscillating Audio Tone for use with Tone Probes to
Locate Cables. |
|
- Tests Data and Telephone Cables up to 320 Feet (100 meters)
for Proper Pairing for EIA/TIA-568A, EIA/TIA-568B, Token Ring, 10 Base T,
and Common |
|
- Category 5 Configurations. |
|
- Tests Unshielded UTP and Shielded STP Data Cable. |
|
- Detects Good Connections, Open Connections, Crossed Wires
and Split Pairs. |
|
- Tests Common BNC Connected 50 and 75 ohm Coaxial Cables up
to 320 Feet (100 meters) for Continuity. |
|
- Tests Coaxial Cable Types RG58,
RG59, RG6, RG6 Quad, Belden 8281, RG8, RG11 and More. |
|
- Shows Test
Results at Both Ends of Cable. |
|
- Belt Clips Provided and Lanyard Holes
Embedded in Case to Attach to Belt or Wrist. |
|
- Uses Standard 9-Volt DC Battery
with Auto-Off Function to Preserve Battery Life. |
|
- Includes Standard 9-Volt Battery |
|
- One-Year Warranty |
|
-
Test Set (Main and
Remote) |
|
- 2 RJ45 Patch
Cords |
|
- 2
Belt Clips |
|
- Test
Set (Main and
Remote) |
|
- 2 RJ45 Patch
Cords |
|
- 2 BNC
Coaxial Cables |
|
- 2 CATV "F"to BNC
Adapters |
|
- 1BNC/BNC
Adapter |
|
- 1
Shielded RJ45 Coupler |
|
- 2
Belt Clips in Durable
Case |
|

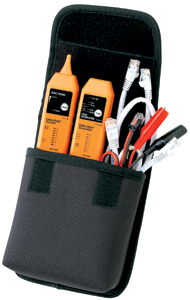

Paladin Tools - Tone & Probe Plus
Cable Check
|
Click for larger image |
Product
Overview: Identify connector and
cable pin-out for patch cords and installed cables with the LAN cable check
functionality. The tester also provides full-range continuity testing, line
condition, signal tracing & wire identification with tone generator and tone
probe cable tracer capabilities. One-Year warranty
|
Cable
Mapping Function Identifies: |
- Good Connection, Opens, Shorts and Crosses |
|
|
- Connector and Cable Pin-Out |
|
|
- Clear LED Display for Each Pin and Shield |
|
|
- Shielded RJ45 Modular Plug Socket |
|
- Automatic Display of Mapping with Dual Speeds: Slow or
Fast |
|
- Tests RJ11 and RJ45 Cables with Runs up to 600 feet |
|
Telephone Test Set and Tone Probe Cable Tracer |
|
|
- Check Polarity of Telephone
Power Line |
|
-
View Telephone Line Status: Dial Tone, Ringing or Busy Line |
|
-
Provides Talk Power for Telephone Lines and Butt Set Use |
|
- Selectable Dual/Single
Tone Application for Balanced and Unbalanced Circuits |
|
-
Four Tone Generator Patterns |
|
-
Test Continuity of Wires, Cables and Loads |
|
-
Tone Generator Features Auto-Off Function |
|
-
Located Patch and Termination Point of Wire |
|
-
Quickly Identify Cable Pair Carrying Tone Signal |
|
-
Inductive, High Sensitivity Probe |
|
-
Jack for Headset |
|
-
Audible Speaker with Adjustable Volume Control Enables use
Without a Butt
Set |
|
- Main & Remote Units |
|
-
2 9v Batteries |
|
-
2 RJ45 Shielded Patch Cords |
|
-
RJ11 & Alligator Clip Cord |
|
-
RJ11 Patch Cord |
|
-
Durable, Nylon Carrying Case |
|
Weight |
2 lbs. (3.3Kg) |
|
Length |
6.75" (171mm) |
|
Width |
5.25" (133mm) |
|
Diameter |
2.25" (57mm) |
|
|
|
|
Tone Generator |
|
Output Voltage |
>8V, Open 5V (ohm load) |
|
4
Tone Sequences |
Single,
Dual Slow, Dual Fast, Multi-Tone |
|
Battery |
9 VDC |
|
Battery
Life |
120 Hours |
|
Atuo
Power-Off |
1 Hour |
|
|
|
|
Tone Probe/ Cable Tracer |
|
Battery |
9 VDC |
|
Battery Life |
10 Hours |
|
| Paladin Tools - 1573
- Tone & Probe Cable-Check |
$77.75 |
[Add to Cart] |
Paladin Tools - Data/Link ID and
Cable-Check
|
Click for larger image |
Product
Overview:
This handy unit is a multi-purpose tester at an affordable price. It maps
UTP, STP, and flat satin cables with RJ45 terminations to identify good
connections, opens, shorts, and crosses and the unit also identifies network
activity and transmission speeds.
|
- Cable
Mapping Function Tests Data & Phone Connection Schemes
Including Patch Cords and Installed Cables |
|
- Identifies Cross-Over Telephone Connections |
|
- Detects PC (NIC) & HUB Data Transmissions and PC (NIC)
& HUB NLP or FLP Link Pulse |
|
- Identifies Data & Link Transmission Speeds with Real
Time Detections: 100 MB or 10 MB |
|
- Automatically Scans with Choice of Slow or Fast Speeds |
|
- Low Battery Detection on LAN ID Tester |
|
- One-Year Warranty |
|
- 2, RJ45 Patch Cords |
|
- 9V Battery Included |
|
- A Durable Nylon Carrying Case with Belt Loop |
|
|
Main Unit |
Remote |
|
Length |
5.5" (140mm) |
2.93" (74.4mm) |
|
Width |
2.5" (64.5mm) |
1.13" (28.7mm) |
|
Diameter |
.86" (41mm) |
.86" (21.9mm) |
|
|
|
|
Output |
9Vdx normal @ 41 mA max |
|
Battery Life |
15 Hours continuous Use |
|
| Paladin Tools - 1576
- Data/Link ID and Cable Check |
$58.00 |
[Add to Cart] |
Paladin Tools - Data/Link ID and
Cable-Check
|
Click for larger image |
Product
Overview:
Test continuity of RJ45 data and telephone connection
schemes on patch cords or on installed cable runs to identify: good
connections, opens, shorts and cross-connections.
|
Telephone Test Set and Tone Probe Cable Tracer |
|
|
-
Identifies Cross-Over Telephone Connections |
|
- Automatically Scans When Cables are Connected and Unit
Turned On |
|
- Two Scan Speeds: Fast or Slow |
|
- Map Connector and Cable Pin-Out |
|
- Tests Cable Up to 1,650 Feet or 500 m |
|
- Also Tests R11 Connections Using an RJ11 Adapter (Not
Included) |
|
- One-Year Warranty |
|
- 2, RJ45 Patch Cords |
|
- 9V Battery Included |
|
- A Durable Nylon Carrying Case with Belt Loop |
|
|
Main Unit |
Remote |
|
Length |
5.5" (140mm) |
2.93" (74.4mm) |
|
Width |
2.54" (64.5mm) |
1.13" (28.7mm) |
|
Diameter |
1.61" (41mm) |
0.86" (21.9mm) |
|
|
|
|
Weight |
12 oz. (343g) |
|
Output |
9Vdx normal @ 10 mA max |
|
Connection Type |
RJ45 UTP Modular Plug |
|
Battery |
9Vdc NEDA 1604, JIS 006P, IEC
6l61 |
|
Battery Life |
15 Hours Continuous Use |
|
LAN & A/V Cable-Check
|
Click for larger image |
Description:
Quickly and easily test RJ45, cable TV "F", RCA, and BNC cabling used in
smart home installations.
|
-Tests
RJ45 patch cords and network installations to identify
good connections, opens, shorts or cross-connections
|
|
-Connection
type:RJ45 UTP or STP modular plug & cable TV "F" coaxial
|
|
-Identifies
data and telephone connection schemes |
|
-Maps
cable pin-out |
|
-Tests
continuity of cable TV cables and installed cable runs |
|
-Battery
life for 15 hours continuous use |
|
-Max.
length: 1,650' (500 m) |
|
-Combination
network and coax tester |
|
-Automatic
scanning |
|
-User
selectable slow or fast speeds |
|
-Quickly
check cable installations and patch cords |
|
-Easy-to-use
with clear LED read-outs |
Includes: 2 RJ45 patch cords, 75ohm male terminator, CATV "F" Female
adapter, 2 CATV "F"(Male) to BNC(Female) adapter, 2 CATV "F"(Male) to
RCA(Female) adapter, 9V battery and durable nylon carrying case
|
|
|
