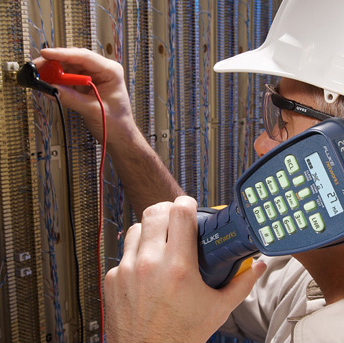

Fluke Networks’ new TS52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment.

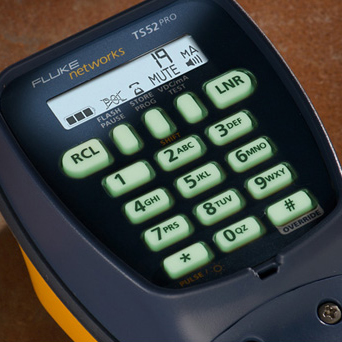

The back lit LCD and phosphorescent (glow-in-the-dark) keypad brings light to even the darkest of work environments, providing perfect line diagnostic clarity.

The TS52 PRO Test Set is also equipped with 2-way speakerphone and DataSafe™ Pro data protection technology featuring superior high-impedance monitoring, Data Lockout and Lockout Override, making you completely safe.

  TS52 PRO Test Set includes:
- Display – Back lit LCD and glow-in-the-the dark keypad
- DataSafe Pro – Superior high-impedance monitoring, lockout and override, making you completely safe in any mode
- DropSafe – Passes 20 foot drop test
- DSL/POTS Filtering Technology – allows technicians to clip on a live DSL line to test POTS service without downing or disrupting data service
- RainSafe – Designed for use in rain conditions.

  Five Testing Functions:
- Data indication – warns when data is present.
- Voltage indication – troubleshooting feature to identify potential line problems
- Current (mA) indication – verifies sufficient line current
- Caller-ID – verifies service is functional
- DTMF Digit Grabbing – Isolate faulty customer premise equipment

  Other features:
- Data lockout with data lockout override
- 2-Way hands-free speakerphone: for true hands-free conversation
- Line and battery powered: shares power from the telephone line and the 9v internal battery, increasing the life of the battery
- Replaceable heavy-duty braided cord and locking spring loaded belt clip
- Low battery indication
- Mute indication
- Polarity indication
- Tone & pulse dialing
- (Optional) 1-Way amplified speakerphone mode
- Amplified speaker
- Last number redial
- Over voltage protection
- Over current protection
- High voltage lockout
- Mute
- PBX pause button
- Speed dialing
- Volume control levels
- Hearing aid compatible
- Visual ANAC mode

  *visual ANAC (automatic number announcement circuit) for service provider use only, not available in all regions

  Durability & Exterior:
- Rainsafe and Weatherproof case design for severe weather conditions.
- DropSafe™ 20ft onto concrete
- Mountable, top or bottom, extra large metal locking belt clip
- Line cord strain relief

Electrical
Current Range
(Off-Hook) 10 mA to 100 mA
DC Resistance

Off-Hook 150 Ωnominal
On-Hook >3 M Ω
AC Impedance

Off-Hook 600 Ωnominal; 300 Hz to 3400 Hz
On-Hook >120 kΩ 300 Hz to 3400 Hz

Rotary Dial Output
Pulsing Rate
10 pps ±1 pps
Break/Make Ratio
60/40
Interdigit Interval
>300 ms
Resistance During Break
>100 kΩ

DTMF Output
Tone Frequency Error
±1.5 % maximum
Tone Level
-3 dBm combined (typical)
High versus Low Tone Difference
2 dB ± 2 dB

Memory Dialing
Memory Capacity
10 speed dial memories plus one last number redial memory
Digit Capacity
23 digits per memory
PBX Pause Duration
4 seconds
Hook Flash Duration
User programmable; default of 600 ms
Automatic Speaker Shut Off Duration
User programmable; default of 2 minutes
Battery
9 V alkaline battery

Physical
Measurement
10 in x 3.75 in x 4.25 in (254 mm x 96 mm x 107 mm)
Weight
Less than 1.5 pounds (0.68 kg) with one belt clip
Water Resistance
Designed to be rain and moisture resistant.
Drop Test Passes
20 foot drop test

Temperature Range
Handset speech and dialing functions
-22°F to 140 °F (-30°C to 60°C)
LCD function
-13°F to 140°F (-25°C to 60°C)
Storage
-22°F to 150°F (-30°C to 66°C)
Altitude
To 10,000 ft. (3,000 m) max
Relative Humidity
95% to 30°C
75% to 40°C
45% to 50°C
30% to 60°C
Safety
Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC/EN 61010-1 2nd Edition for measurement Category I, 300 Vdc Max, Pollution Degree 2
EMC
Complies with EMC EN61326-1
Note: Specifications subject to change without notice.
