ezEX-RJ45 Termination System provides a solution for terminating larger diameter twisted-pair cables.
In todays networks, twisted pair cables are demanding more speed
and bandwidth. To help meet these requirements, Cat5e/6/6A
cables have increased in size. Both the outer diameter of the cable
and the insulation diameter of the conductors are larger and vary
by manufacturer, making cable and connector compatibility a
challenge. The new patented ezEX-RJ45 Termination System is
the solution providing greater cable to connector compatibility to
meet higher performance demands. The ezEX-RJ45 connectors
feature a unique integrated Hi-Lo stagger load bar and allows big
conductors to pass through the front end of the connector making it
easy to verify the wiring sequence before terminating.
The new ezEX-RJ45 Termination System provides a solution for terminating larger diameter twisted-pair cables, with conductor sizes up to .048. The ezEX-RJ45 connector has a hi-lo stagger design to increase performance and accommodate larger conductors found in Cat5e, Cat6, and Cat6A cables while maintaining the EZ pass through design. This allows you to verify the wiring sequence before terminating. The new EXO; professional crimp tool and EXO-EX die set pair with the ezEX-RJ45; connectors to ensure a flush cut and reliable termination every time. Saving time and money without sacrificing performance on high end jobs.

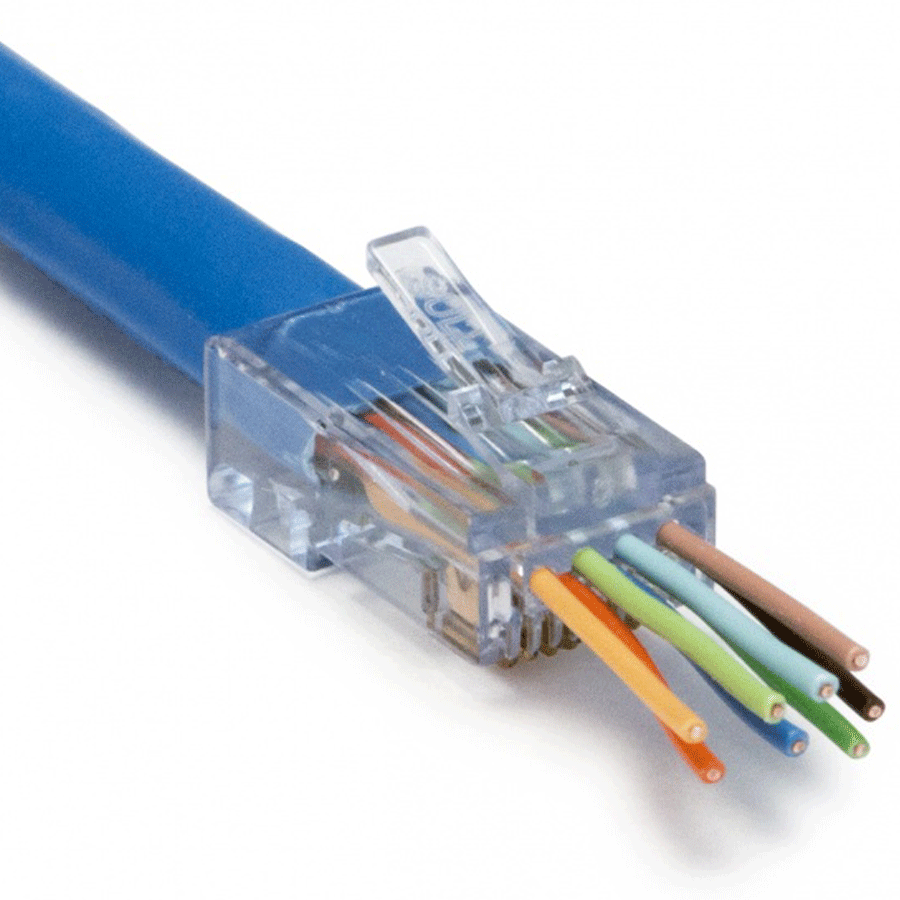

ezEX-RJ45 Connectors:
2 connectors for conductors ranging .039 inches .048 inches
Pass through design allows for easy verification of wiring sequence
One-piece design bars or liners are not required
Rated up to 10 Gigabit for superior performance
Works with solid or stranded conductors
FCC, RoHS 2 & UL compliant
Made in USA

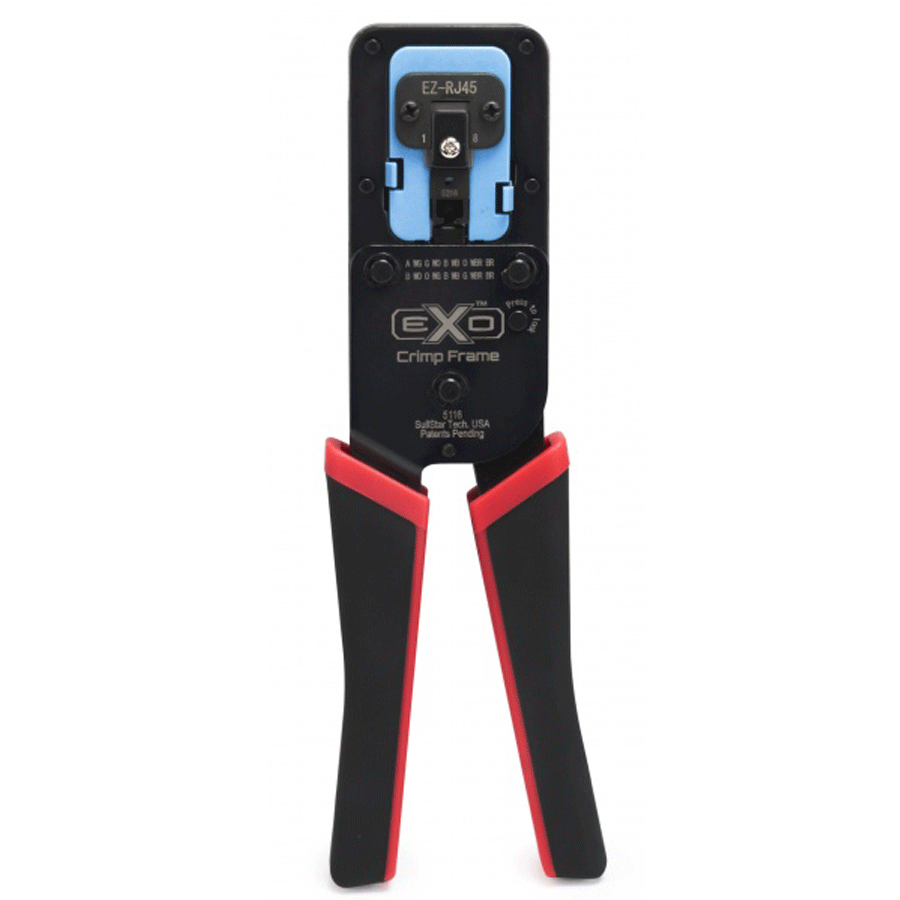

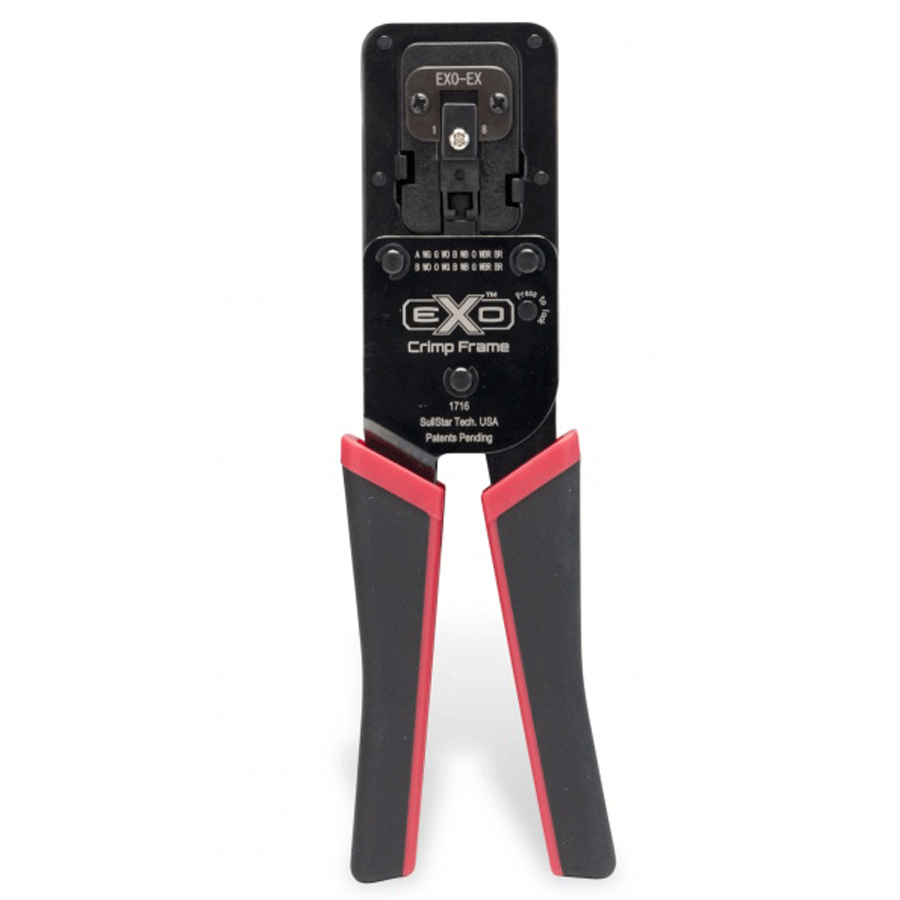

EXO-EX Crimp Tool Frame and Dies:
One-step to crimp and flush cut/trim ezEX-RJ45 conductors
Die sets are easily interchangeable
Reversible die sets for ambidextrous operation
Connectors lock into die set port for easier crimping
Push button lock for easy storage
Ergonomic Comfort Grip TPR Handles
The new ezEX-RJ45 Termination System provides a solution for terminating larger diameter twisted-pair cables, with conductor sizes up to .048. The ezEX-RJ45 connector has a hi-lo stagger design to increase performance and accommodate larger conductors found in Cat5e, Cat6, and Cat6A cables while maintaining the EZ pass through design. This allows you to verify the wiring sequence before terminating. The new EXO; professional crimp tool and EXO-EX die set pair with the ezEX-RJ45; connectors to ensure a flush cut and reliable termination every time. Saving time and money without sacrificing performance on high end jobs.
ezEX-RJ45 Connectors:
2 connectors for conductors ranging .039 inches .048 inches
Pass through design allows for easy verification of wiring sequence
One-piece design bars or liners are not required
Rated up to 10 Gigabit for superior performance
Works with solid or stranded conductors
FCC, RoHS 2 & UL compliant
Made in USA
EXO-EX Crimp Tool Frame and Dies:
One-step to crimp and flush cut/trim ezEX-RJ45 conductors
Die sets are easily interchangeable
Reversible die sets for ambidextrous operation
Connectors lock into die set port for easier crimping
Push button lock for easy storage
Ergonomic Comfort Grip TPR Handles
