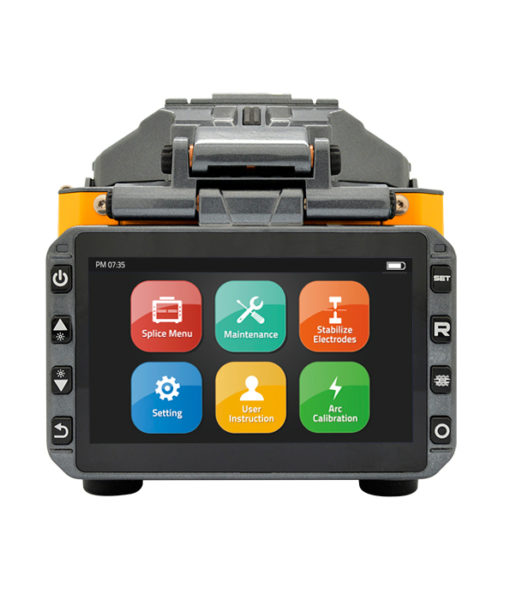

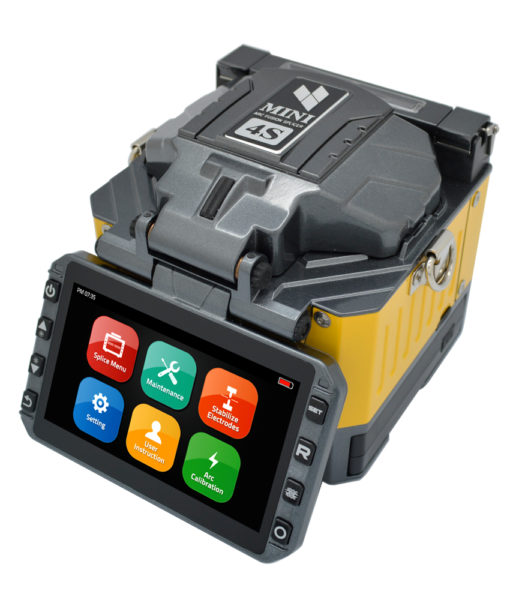

FiberFox Mini4S Active Clad Alignment Fusion Splicer with cleaver

SKU:

Mini4s

Your Price: $3,800.00
Condition: New
In Stock
Free Ground Shipping on orders over $99.00
Qty:
  • Details
  • Reviews
  • Related Items
  • Video
  • PDF's

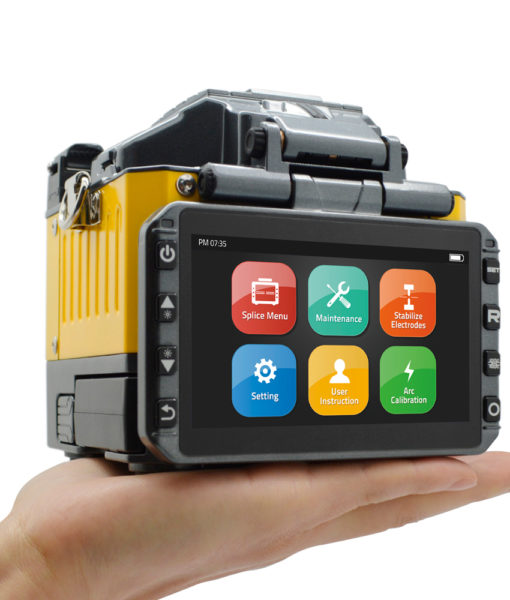

The Smallest and the Lightest Active Alignment Fiber Fusion Splicer

Mini 4S Active Alignment Splicer 4 Motors

Size: 4.8 x 4.88 x 5.4 (in) Weight: 2.88lbs. (w/o battery)

Fastest Splicing Time 7 sec with single mode fiber (quick mode) 16 sec Heating time

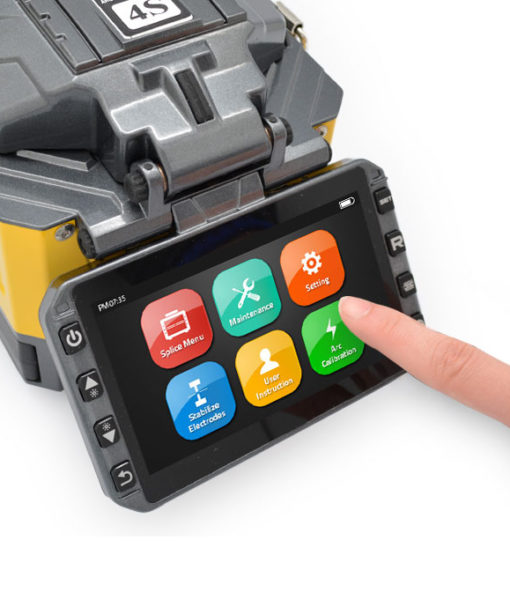

Comes with 2 Battery Packs Full Touch Screen SOC Compatible

Kit Includes
Mini 4S Splicer, Power Cord, Car Cigar Cable, SOC Heater Block, Shoulder Strap, Cleaver Softcase, USB Cable, Cooling Tray, SOC Holder, User Manual CD, Mini 50G Cleaver, AV Adapter, Spare electrode, 2 Batter Packs, Hand CArrying Case

Specification
Splicing Method Active Alignment DAA(Digitalized Active Alignment)
Average Loss SM(0.03dB) / MM(0.01dB) / DS(0.05dB) / NZDS(0.05dB) / G.657(0.03dB)
Return Loss >>60dB
Splice Time 12s average SM / SM 7s Quick mode
Electrode Lifespan >3,500 arcs
Applicable Fiber SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)
Cleaved Length Coating Diameter < 0.25mm = 5-16mm, Coating Diameter > 0.25mm = 8-16mm minimum
Coating Diameter 100-1000um
Cladding Diameter 80-150um
Heating Programs Factory installed mode : 3, User installable mode : 23
Heating Time Typical 18s
Protection Sleeve 40mm, 60mm, SOC-3.0, SOC-0.9
Data Output Micro HDMI-USB master device
Splice Programs 8 user modes, User installable mode : 70+
Splice Memory Up to 2000 records
Battery Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard>
Power Supply AC 100-240V input or DC 9~14V
Monitor Color 4.3 LCD monitor, with Touch Screen (Tempered Glass)
Cameras 2 CCD camera system
Magnification XY : 150 times , X/Y : 300 times
Fiber Display X/Y or XY, single X.Y
Weight 2.88 lbs. (without battery)
Size 4.8 x 4.88 x 5.4 (in)
Wind Protection The max wind speed 15m/s
Operating Environment Elevation 0-5000 meters, 14~140˚F, 0~95% relative humidity
Storage Condition Temperature -40 to 176˚F, 0~95% relative humidity, battery -4~86˚Fv
Pull Test 1.96~2.25N (standard)
