FiberFox Mini6S Core Alignment w/ Auto Focus Fiber Splicer with cleaver

SKU:

Mini6S

Your Price: $7,500.00
Condition: New
In Stock
Free Ground Shipping on orders over $99.00
Qty:
  • Details
  • Reviews
  • Related Items
  • Video
  • PDF's

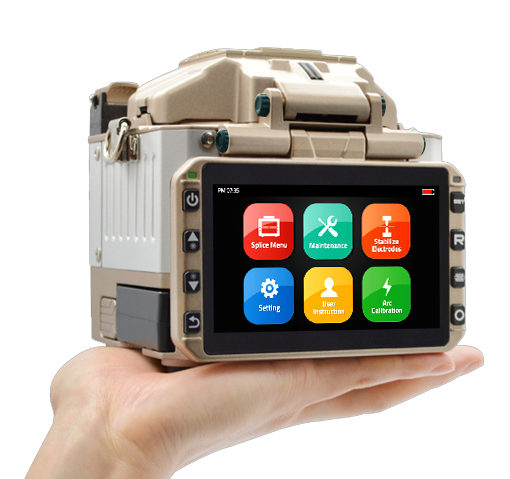

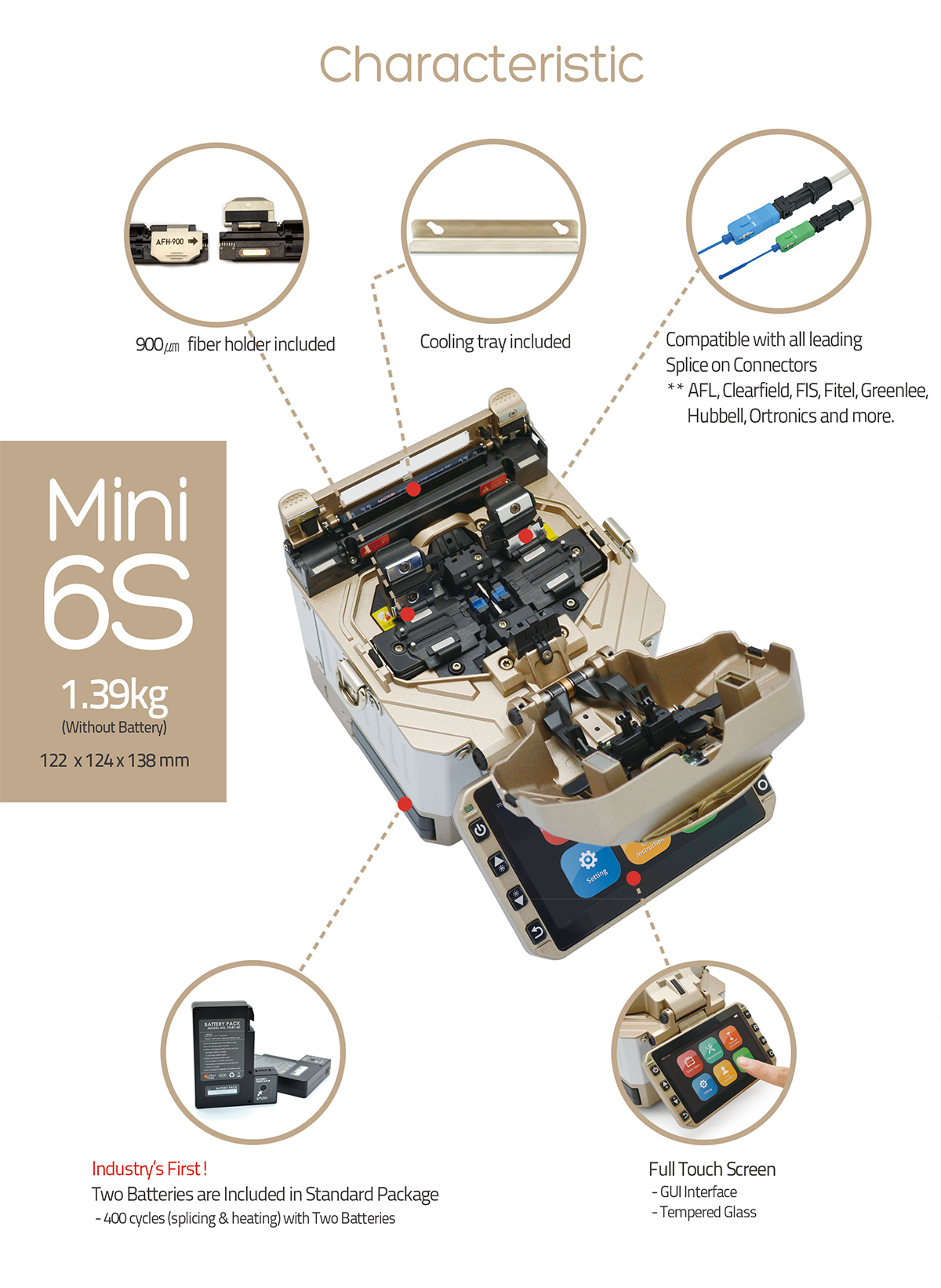

The Smallest and the Lightest Core Alignment Splicer

900um holder included!!

Size: 4.8 x 4.88 x 5.4 (in) Weight: 3.06 lbs. (w/o battery)

Fastest Splicing Time 7 sec with single mode fiber 16 sec Heating time

Comes with 2 Battery Packs Full Touch Screen SOC Compatible

Kit Includes
MINI 6S Splicer, Power Cord, Car Cigar Cable, SOC Heater Block, Should Strap, Cleaver Softcase USB Cable, Cooling Tray, SOC Holder, USER Manual CD, MINI 50G cleaver, AC Adapter, Spare Electrode, 2 Batter Packs, Hand Carrying Case

Specification
Splicing Method Core Alignment DWACAS(Digital Wavelength Automatic Core Alignment System)
Average Loss SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)
Return Loss >>60dB
Splice Time 12s average SM / SM 7s Quick mode
Electrodve Lifespan >3,500 arcs
Applicable Fiber SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)
Cleaved Length Coating Diameter < 0.25mm = 8-16mm, Coating Diameter > 0.25mm = 16mm minimum
Coating Diameter 100-1,000um
Cladding Diameter 80-150um
Heating Programs Factory installed mode : 37, User installable mode : 110
Heating Time 16s
Protection Sleeve 40mm, 60mm, SOC Connector
Data Output Micro HDMI-USB master device
Splice Programs Factory installed mode: 33, User installable mode: 70+
Splice Memory Up to 2,000 records and 2,000 splice images
Battery Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard>
Power Supply AC 100-240V input or DC 9~14V

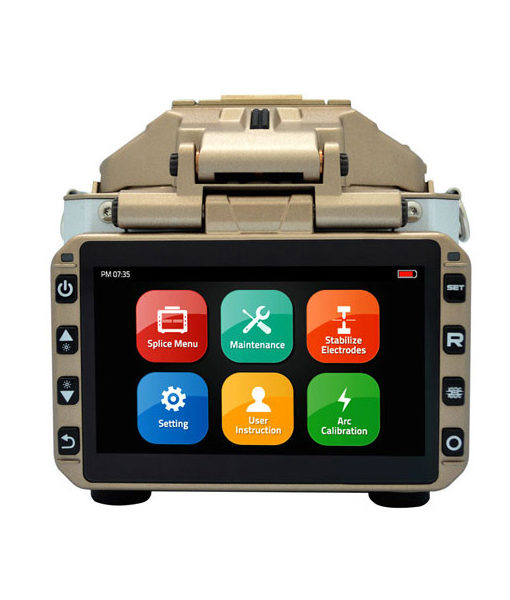

Monitor Color 4.3 LCD monitor, with Touch Screen (Tempered Glass)
Cameras 2 CCD camera system
magnification XY style : 150 power, X/Y : 300 power
Fiber Display X/Y or XY, single X.Y
Weight 3.09 lbs (without battery)
Size 4.8 x 4.88 x 5.4 (in)
Wind Protection The max wind speed 15m/s
Operating Environment Elevation 0-5,000 meters, -15~60C, 0~95% relative humidity
Storage Condition Temperature -40 to 176F, 0~95% relative humidity, battery -4~86F
Pull Test 1.96~2.25N (standard)
