Category Archives: Cable Testers

PoE Pro Eliminate guesswork from your PoE installations

The PoE Pro eliminates guesswork when installing, maintaining and troubleshooting PoE devices and data cabling.

Ideal Networks POE PRO #R158004

• No more trial and error
Accurately measure the maximum power available

• Supports PoE up to 90W (PoE++)
Test all PoE Classes (0-8) and Types (af/at/bt)

• Identifies the powered pairs
Helps to determine PoE switch or mid-span injector

• Verify the PoE installation
Pass / Fail indication to IEEE standards

• Extended Power Test
Some switches may provide power exceeding their IEEE
Class rating. Measure the maximum available power up to
90 watts.

• Plus all the familiar cables testing features of the VDV II Pro

For more info on the POE Pro click here

SecuriTEST IP CCTV Camera Tester

Securitest IP camera Tester

CCTV Camera Tester for IP Digital / HD Coax / Analog Systems

SecuriTEST IP is an installation and troubleshooting tester
for digital/IP, HD coax and analog CCTV camera systems.
With a single tester that can power, configure and document,
SecuriTEST IP increases productivity from start to finish.

Supply power to cameras via PoE/PoE+ (Power over Ethernet)
or standard 12V DC power using its internal Li-Ion battery,
eliminating the need for external power adapters and injectors.

The QuickIP™ feature allows installers who are new to IP
camera systems to quickly and easily connect to cameras
without being network experts.

Create professional test reports including video screen shots
to verify the job has been completed successfully and reduce
unpaid call backs.

  • Physically connect camera – Connect camera to the tester using RJ-45, BNC or Wi-Fi.
  • Power camera – Power the camera using: PoE+ (tester battery or network pass through), 12V DC power (tester battery).
  • Camera Identification – and Login Automatic network configuration and connection to IP cameras.
  • Send reports – Send reports from the jobsite using email or preferred file sharing service.
  • Document – Create PDF installation reports with video images, statistics and camera settings.
  • Camera setup – Comprehensive setup options including aim, focus, PTZ presets, network settings (IP), video settings.

Camera Identification and Login

QuickIP™ automates the process of connecting to IP cameras, allowing novice technicians to configure IP cameras as easily as analog cameras. For instances where dynamic IP addresses are required by the camera,SecuriTEST IP has a built-in DHCP server making setup easy and eliminating the need for additional network hardware. A suite of networking troubleshooting tools are available to pinpoint and solve network connectivity issues.

  • Display Network Configuration
  • Ping / TraceRoute
  • Hub blink for Port Identification
  • IP network Scan – check for IP address conflicts

Professional Reports*

Easily transfer reports from the jobsite – Using
the built-in Wi-Fi and the web browser, test reports
can be sent directly from the tester using email,
your preferred file sharing service or be exported
on microSD card.

Convert unpaid call backs to billable service
calls
– Generate professional PDF reports that
provide proof of installation to the client.

No more spreadsheets – Today security engineers
waste time manually filling in excel documents to
create reports. SecuriTEST IP is the first camera
tester to capture camera image(s), network
configuration and automate documentation.

Reduce troubleshooting time – Reports
capture as-built configuration that will help to
reduce troubleshooting on future call backs.

18GB of combined storage
10GB of internal memory and 8GB available
on the SD memory card included.
* Only applicable when using the ONVIF protocol.

Data Cable Test (UTP) – Wiremap

Eliminate guess work troubleshooting cabling
faults
– SecuriTEST IP is used in combination with
the “Cable Tracer/Remote Tool” to pinpoint cabling
faults such as cross overs, miswires, shorts and
opens. The length of the cabling is also provided.

Determine water ingress in data cabling – Many
cables are run outside or in underground conduit
and exposed to moisture. Moisture ingress through
the cable jacket, which is impossible to see, leads
to a number of performance problems.

IP Camera Setup

SecuriTEST IP offers a comprehensive range of ONVIF and non-ONVIF camera setup tools to ensure the camera is installed correctly

Data Cable Test (UTP) – Wiremap

Eliminate guess work troubleshooting cabling
faults
– SecuriTEST IP is used in combination with
the “Cable Tracer/Remote Tool” to pinpoint cabling
faults such as cross overs, miswires, shorts and
opens. The length of the cabling is also provided.

Determine water ingress in data cabling – Many
cables are run outside or in underground conduit
and exposed to moisture. Moisture ingress through
the cable jacket, which is impossible to see, leads
to a number of performance problems.




SecuriTEST IP kit includes: – Digital/Analog/HD Coax CCTV Tester.
1 x SecuriTEST IP Camera Tester, 1 x carry case with strap, 2 x
neck straps, 1 x PSU EU/UK/US/AU adapters, 1 x cable tracer/
remote, 1 x 9.84 ft Cat. 5e UTP patch cable, 1 x 9.84 ft coax
cable with two end BNC (m) connectors, 1 x 9.84 ft DC12V 3.5(f)
to 2.5(f) power cable, 2 x RS485 female green plugs, 1 x 1.64
ft RS485 cable with female green plug and two clips, 1 x 1.64
ft audio male jack with other end two clips, 1 x quick reference
guide, 1 x 8GB microSD card and reader with USB adapter

For More on Securitest IP Tester click Here

https://www.datacomtools.com/cgi-datacomtools/sb/order.cgi?storeid=*1237f0a48a820778974143&dbname=products&guid=4d1faab0-22ef-11e8-ae3b-0cc47a92dd6a&function=add

Accurately finds cable length up to 3000′ | datacomtools.com

Accurately finds cable length, impediments in the cable and conditions at the end of every wire in your data, power, or communications/video system up to 3,000 ft. With the complexity of today’s electrical, data, voice and video signal carrying systems, you need a tool that is fast, accurate and easy to use to see down the wire and show the exact conditions that exist. Snap Shot is that tool. Made in America with American technology, Snap Shot is the new 21st century tool for testing every type of cable in any industry. Advanced Spread Spectrum TDR technology works in all wire environments and is immune to voltage, current, or data stream disruptions. See the true picture of your wiring and cable systems with Snap Shot today.

Snap-Shot

Learn more about the snapshot here

Watch the demonstration video here

Map your coax network in seconds with the Coax Clarifier Coax Tester

Simply attach the coax clarifier remotes to the coax ends you want to map and hook up the clarifier to the other end.  Test and map your coax network in seconds.  It will even test though coax splitters.

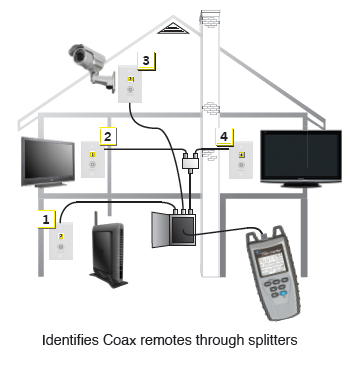

identifies-remotesMaps runs through splitters to show an accurate picture of the coax system layout using up to 4 Coax RF Remotes. Up to 12 ID Only Coax Remotes also available for wiremapping on home runs.

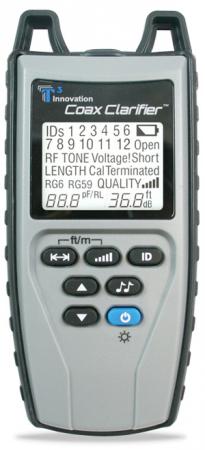

coax-clarifier_1

Dark unpowered coax systems give no clue as to their design, condition or configuration. The new Coax Clarifier Coax Tester by T3 Innovation makes it simple and easy to discern the layout of a coax network, locate faults on individual cable runs, identify remotes through splitters, and determine cable run length. In addition, separate cable mapper sets allow a technician to map out the entire coax system and measure the quality and characterization of the overall network for carrying services, such as high grade video, surveillance data and HD programming.

  • Fast testing using multiple coax mapper remote sets
  • Quickly discover coax system layout configuration to save time
  • All testing in one unit: Discovery, Quality and Condition
  • Clear concise measurement display for easy understanding of the capability of each run

Click Here to buy the coax clarifier

Full Color Cable Testing at an affordable price

The Cable Prowler combines the functions of a high-end cable tester and length measurement tester, with the capability to identify link status, link capability, and PoE detection. All of this is in full color and internal memory to save results.  The Cable Prowler also has the ability to name each cable and save all test results. Cable results can be exported to a computer via micro USB cable for record keeping and printing.

cable-prowler-t3_0
• Displays length measurement for each pair in feet or meters using TDR technology
• Detects presence of PoE and class of PoE per IEEE 802.3af/at with load test for voltage drop
• Detects and reports current link speed and link capabilities for active Ethernet drops up to 1 Gbps
• Link light to identify location on a hub/switch/router port
• Tests ethernet cable configuration and verifies connectivity while conducting tests for opens, shorts, miswires, split pairs, and reverses
• Generates selectable tones on selected pins for use with tone tracers
• Supports up to 8 testing & ID remotes for network & telephone cables
• Supports up to 20 network & coax ID – only mapping remotes
• View saved cable tests
• Full color graphical wire-mapping
• Ability to define cable name, save cable tests and print ALL results (cable testing & network testing)

Click here for more info on the cable prowler
